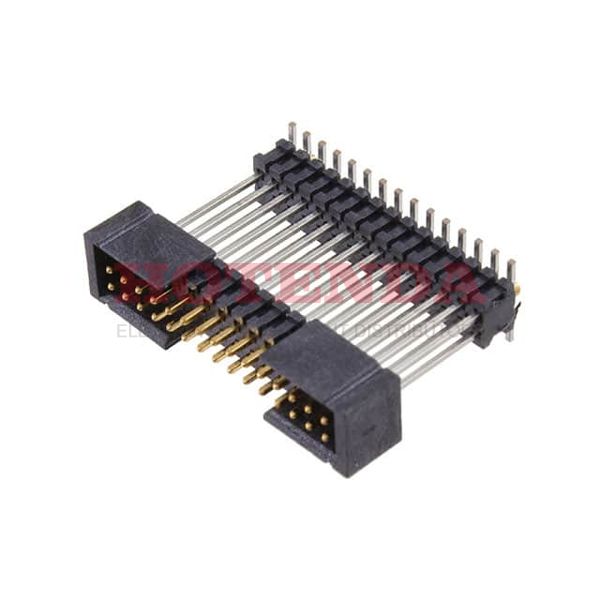

Name: FW-15-05-F-D-505-075-ES-A
Brand: Samtec Inc.
SKU: FW-15-05-F-D-505-075-ES-A
Price: 9.35000 USD
Availability: InStock

new

FW-15-05-F-D-505-075-ES-A

Manufacturer part number:FW-15-05-F-D-505-075-ES-A

Manufacturer:Samtec Inc.

Description:FW-15-05-F-D-505-075-ES-A datasheet pdf and Rectangular Connectors - Board Spacers, Stackers (Board to Board) product details from Samtec Inc. stock available on our website

Case Package:SOT-23

Datasheet:FW-15-05-F-D-505-075-ES-A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Mount	Through Hole
Mounting Type	Surface Mount
Packaging	Tube
Series	Flex Stack, FW
Part Status	Active
Termination	Solder
Connector Type	BOARD STACKING CONNECTOR
Number of Positions	30
Color	Black
Number of Rows	2
Gender	Male
Additional Feature	SHROUDED
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.050 1.27mm
Total Number of Contacts	30
UL Flammability Code	94V-0
Contact Finish - Post (Mating)	Gold
Row Spacing	0.050 (1.27mm)
Length - Stack Height	0.505 12.827mm
Length - Overall Pin	0.580 14.732mm
Length - Post (Mating)	0.075 1.905mm
Contact Finish Thickness - Post (Mating)	3.00μin 0.076μm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

FW-15-05-F-D-505-075-ES-A Product Details

FW-15-05-F-D-505-075-ES-A Overview

A BOARD STACKING CONNECTOR package is included with it.Mounting type is Surface Mount.We package the product with a Tube case.It's part of the Flex Stack, FW Series.There are also other features, like SHROUDED, to name a few.
