Name: FTSH-125-03-L-D
Brand: Samtec Inc.
SKU: FTSH-125-03-L-D
Price: 9.61000 USD
Availability: InStock

new

FTSH-125-03-L-D

Manufacturer part number:FTSH-125-03-L-D

Manufacturer:Samtec Inc.

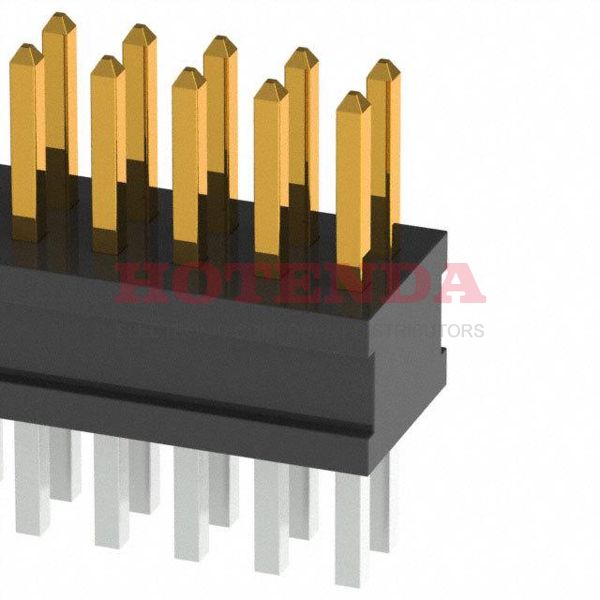

Description:FTSH Series 2-Row Header, Cuttable Solder Phosphor Bronze Tube Through Hole Gold Liquid Crystal Polymer (LCP) 50-Position Board to Board or Cable 0.099 2.51mm Height

Case Package:SOT-23

Datasheet:FTSH-125-03-L-D Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	FTSH
Published	2008
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
ECCN Code	EAR99
Connector Type	Header, Cuttable
Number of Positions	50
Number of Rows	2
Gender	Male
Additional Feature	ELP
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.4A per Contact
Insulation Height	0.099 2.51mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL, CSA
Reliability	COMMERCIAL
Row Spacing - Mating	0.050 (1.27mm)
Contact Length - Post	0.090 2.29mm
Shrouding	Unshrouded
Number Of PCB Rows	2
Contact Finish - Post	Tin
Contact Length - Mating	0.065 1.65mm
PCB Contact Pattern	RECTANGULAR
UL Flammability Code	94V-0
Body Depth	0.099 inch
Overall Contact Length	0.255 6.48mm
Mating Contact Pitch	0.05 inch
Plating Thickness	10μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Length - Termination	0.09 inch
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

FTSH-125-03-L-D Product Details

FTSH-125-03-L-D Overview

Packaging for this item is Header, Cuttable.There is a mounting type of Through Hole for this device.It is necessary to use a Tube case for packaging the product.This product is part of the FTSH Series.Moreover, there are a number of other features, including ELP, to name just a few.Through Hole is used to mount the part.In this case, the device operates at -55°C~125°C Operating Temperature.
