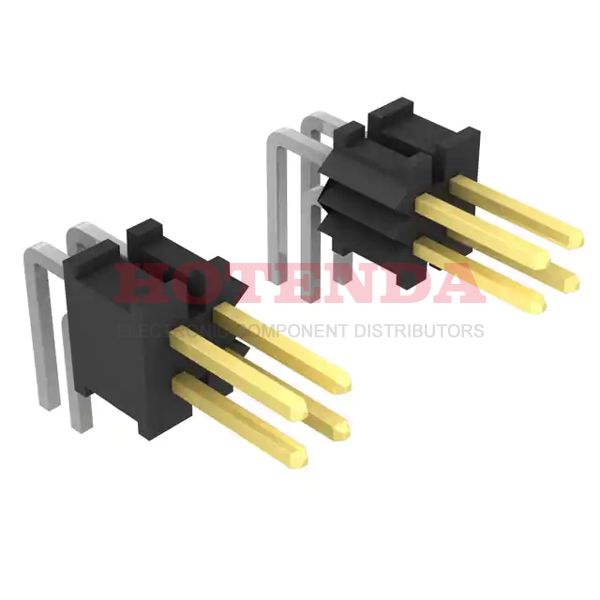

Name: FTSH-119-02-L-D-RA
Brand: Samtec Inc.
SKU: FTSH-119-02-L-D-RA
Price: 8.62000 USD
Availability: InStock

new

FTSH-119-02-L-D-RA

Manufacturer part number:FTSH-119-02-L-D-RA

Manufacturer:Samtec Inc.

Description:FTSH Series 2-Row Header, Cuttable Solder Phosphor Bronze Tube Through Hole, Right Angle Gold Liquid Crystal Polymer (LCP) 38-Position Board to Board or Cable 0.135 3.43mm Height

Case Package:SOT-23

Datasheet:FTSH-119-02-L-D-RA Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	FTSH
Published	2012
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
ECCN Code	EAR99
Connector Type	Header, Cuttable
Number of Positions	38
Number of Rows	2
Gender	Male
Additional Feature	ELP
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.4A per Contact
Insulation Height	0.135 3.43mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Body Length or Diameter	0.95 inch
Row Spacing - Mating	0.050 (1.27mm)
Contact Length - Post	0.090 2.29mm
Shrouding	Unshrouded
Number Of PCB Rows	2
Contact Finish - Post	Tin
Contact Length - Mating	0.075 1.90mm
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.135 inch
Insulation Resistance	5000000000Ohm
Mating Contact Pitch	0.05 inch
Dielectric Withstanding Voltage	1000VAC V
Plating Thickness	10μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Length - Termination	0.09 inch
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

FTSH-119-02-L-D-RA Product Details

FTSH-119-02-L-D-RA Overview

Currently, it is packaged in Header, Cuttable.The mounting type of the device is Through Hole, Right Angle.A Tube case is used to package the product.A product of the FTSH Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as ELP, to name a few.Through Hole represents the mounting point for the part.-55°C~125°C Operating Temperature is the default operating temperature for the device.
