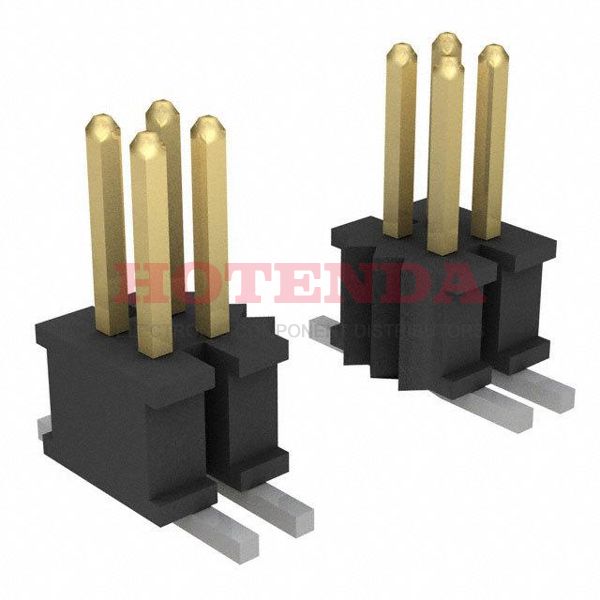

Name: FTSH-113-01-LM-DV-P-TR
Brand: Samtec Inc.
SKU: FTSH-113-01-LM-DV-P-TR
Price: 5.43000 USD
Availability: InStock

new-10%

FTSH-113-01-LM-DV-P-TR

Manufacturer part number:FTSH-113-01-LM-DV-P-TR

Manufacturer:Samtec Inc.

Description:FTSH Series 2-Row Header, Cuttable Solder Phosphor Bronze Tape & Reel (TR) Surface Mount Gold Liquid Crystal Polymer (LCP) 26-Position Board to Board or Cable 0.099 2.51mm Height

Case Package:SOT-23

Datasheet:FTSH-113-01-LM-DV-P-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Series	FTSH
JESD-609 Code	e3
Feature	Pick and Place
Part Status	Active
Termination	Solder
ECCN Code	EAR99
Connector Type	Header, Cuttable
Number of Positions	26
Number of Rows	2
Gender	Male
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Male Pin
Current Rating (Amps)	3.4A per Contact
Orientation	Straight
Depth	3.43mm
Insulation Height	0.099 2.51mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Row Spacing - Mating	0.050 (1.27mm)
Shrouding	Unshrouded
Contact Finish - Post	Tin
Contact Length - Mating	0.120 3.05mm
Length	16.51mm
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

FTSH-113-01-LM-DV-P-TR Product Details

FTSH-113-01-LM-DV-P-TR Overview

Packaging is in the form of Header, Cuttable.This device has a Surface Mount mounting type.An orange Tape & Reel (TR) case is used to package the product.Specifically, it is one of the products in the FTSH Series.Several benefits come from the Pick and Place feature.Devices operate at -55°C~125°C operating temperatures.
