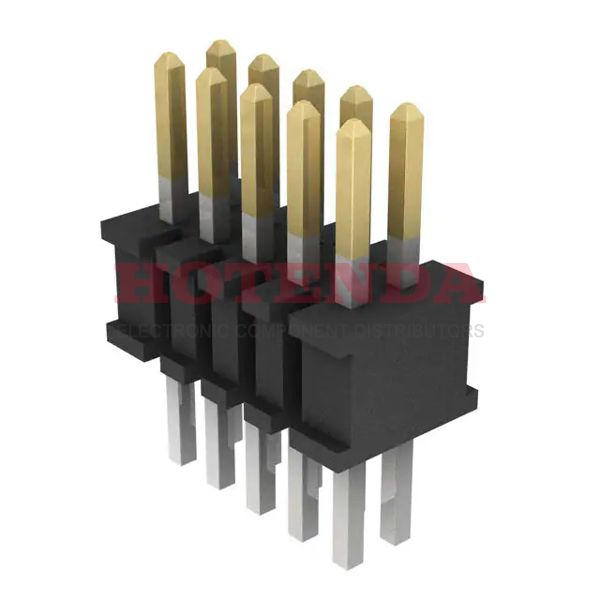

Name: FTSH-105-04-L-D
Brand: Samtec Inc.
SKU: FTSH-105-04-L-D
Price: 2.75000 USD
Availability: InStock

new-10%

FTSH-105-04-L-D

Manufacturer part number:FTSH-105-04-L-D

Manufacturer:Samtec Inc.

Description:FTSH-105-04-L-D datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Samtec Inc. stock available on our website

Case Package:SOT-23

Datasheet:FTSH-105-04-L-D Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2000
Series	FTSH
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header, Cuttable
Number of Positions	10
Number of Rows	2
Gender	Male
Additional Feature	ELP
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	3.4A per Contact
Orientation	Straight
Depth	3.43mm
Insulation Height	0.099 2.51mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Row Spacing - Mating	0.050 (1.27mm)
Contact Length - Post	0.090 2.29mm
Shrouding	Unshrouded
Number Of PCB Rows	2
Contact Finish - Post	Tin
Contact Length - Mating	0.150 3.81mm
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.135 inch
UL Flammability Code	94V-0
Housing Color	Black
Overall Contact Length	0.339 8.60mm
Mating Contact Pitch	0.05 inch
Length	6.35mm
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

FTSH-105-04-L-D Product Details

FTSH-105-04-L-D Overview

Packaging is in the form of Header, Cuttable.Mounting type is Through Hole.To package the product, we use a Tube case.A product of the FTSH Series, it belongs to the range of products of that series.Additionally, there are other features such as ELP.Through Hole is mounting the part.Device runs in -55°C~125°C operating temperature.
