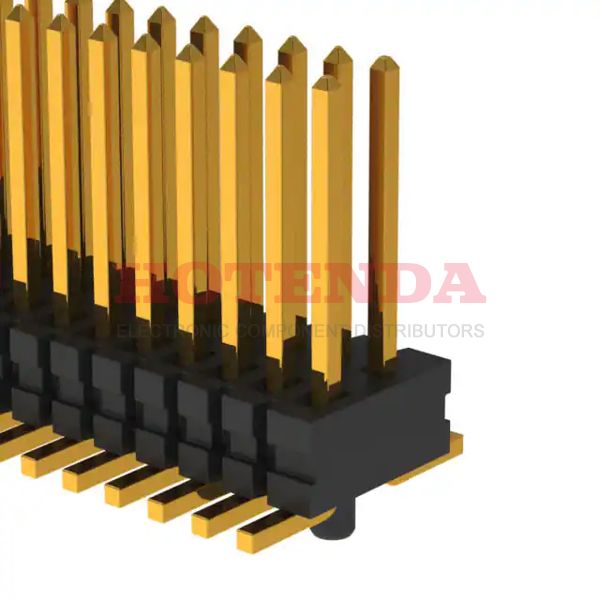

Name: FTE-118-01-G-DV-A
Brand: Samtec Inc.
SKU: FTE-118-01-G-DV-A
Price: 10.36000 USD
Availability: InStock

new

FTE-118-01-G-DV-A

Manufacturer part number:FTE-118-01-G-DV-A

Manufacturer:Samtec Inc.

Description:FTE Series 2-Row Header Solder Phosphor Bronze Tube Surface Mount Gold Liquid Crystal Polymer (LCP) 36-Position Board to Board 0.055 1.40mm Height

Case Package:SOT-23

Datasheet:FTE-118-01-G-DV-A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	FTE
Published	2011
JESD-609 Code	e4
Feature	Board Guide
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	36
Number of Rows	2
Gender	Male
Additional Feature	LOW PROFILE, SHROUDED
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Current Rating (Amps)	2.7A per Contact
Total Number of Contacts	36
Orientation	Straight
Terminal Pitch	0.8mm
Depth	3.05mm
Insulation Height	0.055 1.40mm
Style	Board to Board
Number of Positions Loaded	All
Reach Compliance Code	not_compliant
Pitch - Mating	0.031 0.80mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Row Spacing - Mating	0.047 (1.20mm)
Shrouding	Unshrouded
Number Of PCB Rows	2
Contact Length - Mating	0.075 1.90mm
PCB Contact Pattern	RECTANGULAR
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Max Current Rating	750mA
Length	14.4mm
Plating Thickness	10μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

FTE-118-01-G-DV-A Product Details

FTE-118-01-G-DV-A Overview

Currently, it is packaged in Header.The mounting type of the device is Surface Mount.A Tube case is used to package the product.A product of the FTE Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as LOW PROFILE, SHROUDED, to name a few.A number of features make the Board Guide feature more powerful.-55°C~125°C Operating Temperature is the default operating temperature for the device.
