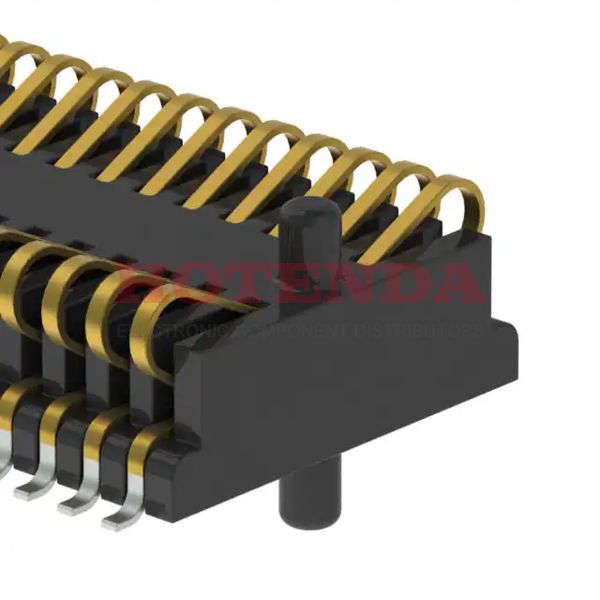

Name: FSI-150-03-G-D-AD-K-TR
Brand: Samtec Inc.
SKU: FSI-150-03-G-D-AD-K-TR
Price: 11.03000 USD
Availability: InStock

new

FSI-150-03-G-D-AD-K-TR

Manufacturer part number:FSI-150-03-G-D-AD-K-TR

Manufacturer:Samtec Inc.

Description:FSI-150-03-G-D-AD-K-TR datasheet pdf and Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) product details from Samtec Inc. stock available on our website

Case Package:SOT-23

Datasheet:FSI-150-03-G-D-AD-K-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	PHOSPHOR BRONZE
Mounting Type	Surface Mount
Insulation Material	LIQUID CRYSTAL POLYMER (LCP)
Mounting Option 1	LOCKING
Board Mounting Option	POSITIONING PIN
Packaging	Tape & Reel (TR)
Series	FSI
JESD-609 Code	e4
Feature	Board Guide, Mating Guide, Pick and Place
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Stacking Compression
Number of Positions	100
Number of Rows	2
Gender	Male
Additional Feature	DUAL SIDE PIN, PAD, TAPE&REEL
HTS Code	8536.69.40.40
Subcategory	Headers and Edge Type Connectors
Pitch	0.039 1.00mm
Total Number of Contacts	100
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Body Length or Diameter	1.998 inch
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.345 inch
Operating Temperature (Min)	-65°C
Body Depth	0.118 inch
Rated Current (Signal)	1A
Body/Shell Style	RECEPTACLE
Polarization Key	POLARIZED HOUSING
Contact Pattern	RECTANGULAR
Contact Finish Thickness	10.0μin 0.25μm
Plating Thickness	10μin
Height Above Board	0.118 3.00mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

FSI-150-03-G-D-AD-K-TR Product Details

FSI-150-03-G-D-AD-K-TR Overview

Packaging for this item is Stacking Compression.To package the product, we use a Tape & Reel (TR) case.Surface Mount is the mounting type of the device.It's from the FSI Series.By operating the device, Board Guide, Mating Guide, Pick and Place is maintained at all times.Other features include DUAL SIDE PIN, PAD, TAPE&REEL, to name just a few.
