Name: ERM8-030-09.0-S-DV-K-TR
Brand: Samtec Inc.
SKU: ERM8-030-09.0-S-DV-K-TR
Price: 9.59000 USD
Availability: InStock

new

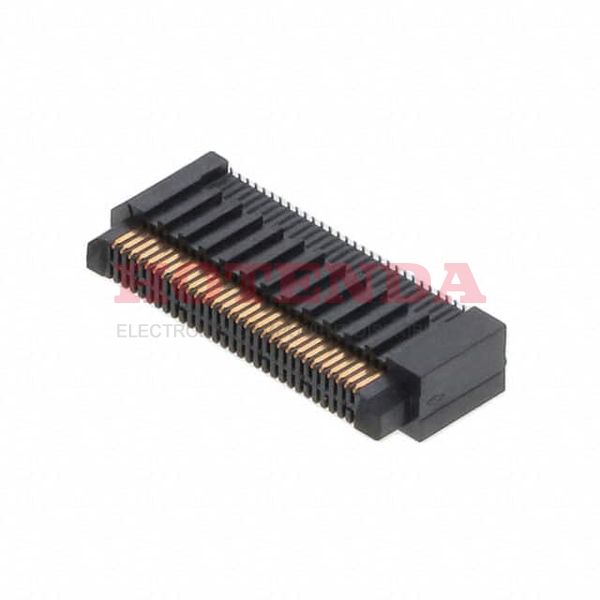

ERM8-030-09.0-S-DV-K-TR

Manufacturer part number:ERM8-030-09.0-S-DV-K-TR

Manufacturer:Samtec Inc.

Description:Header, Center Strip Contacts Tape & Reel (TR) 2 Rows 0.031 0.80mm Surface Mount 60 Positions Edge Rate™ ERM8 Gold Solder Bronze

Case Package:SOT-23

Datasheet:ERM8-030-09.0-S-DV-K-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Bronze
Mounting Type	Surface Mount
Housing Material	Polymer
Packaging	Tape & Reel (TR)
Series	Edge Rate™ ERM8
JESD-609 Code	e3
Feature	Board Guide, Pick and Place
Part Status	Active
Termination	Solder
ECCN Code	EAR99
Connector Type	Header, Center Strip Contacts
Number of Positions	60
Max Operating Temperature	125°C
Min Operating Temperature	-55°C
Number of Rows	2
Gender	Male
HTS Code	8536.69.40.40
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.031 0.80mm
Total Number of Contacts	60
Orientation	Straight
Depth	5.6mm
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Housing Color	Black
Body/Shell Style	PLUG
Max Voltage Rating (AC)	200V
Max Current Rating	1.4A
PCB Contact Row Spacing	3.81 mm
Contact Pattern	RECTANGULAR
Length	30mm
Contact Finish Thickness	30.0μin 0.76μm
Height Above Board	0.508 12.91mm
Stack Height (Mating)	14mm 16mm 19mm
RoHS Status	ROHS3 Compliant

ERM8-030-09.0-S-DV-K-TR Product Details

ERM8-030-09.0-S-DV-K-TR Overview

This product is packaged in a Header, Center Strip Contacts box.An Tape & Reel (TR) case is utilized for packaging the product.Surface Mount indicates that the device is mounted.The product is a part of the Edge Rate™ ERM8 Series.It is possible to ensure that Board Guide, Pick and Place remains constant during operation.Use it below 125°C.A minimum temperature of -55°C must be maintained for the operation of this device.
