Name: ERM5-005-04.0-L-DV-TR
Brand: Samtec Inc.
SKU: ERM5-005-04.0-L-DV-TR
Price: 3.16000 USD
Availability: InStock

new-10%

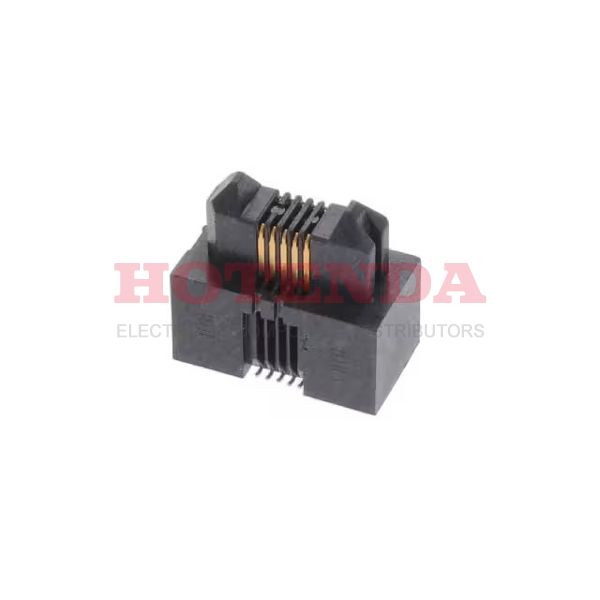

ERM5-005-04.0-L-DV-TR

Manufacturer part number:ERM5-005-04.0-L-DV-TR

Manufacturer:Samtec Inc.

Description:Header, Outer Shroud Contacts Tape & Reel (TR) 2 Rows 0.020 0.50mm Surface Mount 10 Positions Edge Rate™ ERM5 Gold

Case Package:SOT-23

Datasheet:ERM5-005-04.0-L-DV-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Mounting Type	Surface Mount
Insulation Material	LIQUID CRYSTAL POLYMER (LCP)
Mounting Option 1	LOCKING
Packaging	Tape & Reel (TR)
Series	Edge Rate™ ERM5
Feature	Board Guide
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Header, Outer Shroud Contacts
Number of Positions	10
Number of Rows	2
HTS Code	8536.69.40.40
Subcategory	Headers and Edge Type Connectors
Pitch	0.020 0.50mm
Total Number of Contacts	10
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Body Length or Diameter	0.366 inch
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.195 inch
Contact Gender	MALE
Operating Temperature (Min)	-55°C
Rated Current (Signal)	1.5A
Contact Style	CENTRONIC
Contact Pattern	RECTANGULAR
Insulator Color	BLACK
Contact Finish Thickness	10.0μin 0.25μm
Height Above Board	0.270 6.85mm
Stack Height (Mating)	9mm 11mm
RoHS Status	ROHS3 Compliant

ERM5-005-04.0-L-DV-TR Product Details

ERM5-005-04.0-L-DV-TR Overview

It comes in Header, Outer Shroud Contacts packaging.In order to package the product, a Tape & Reel (TR) case is used.The device's mounting type is Surface Mount.It belongs to the Edge Rate™ ERM5 Series of products.When operating, it is possible to ensure that Board Guide is maintained.
