Name: EHT-115-01-S-D-SM-P-TR
Brand: Samtec Inc.
SKU: EHT-115-01-S-D-SM-P-TR
Price: 16.49000 USD
Availability: InStock

new

EHT-115-01-S-D-SM-P-TR

Manufacturer part number:EHT-115-01-S-D-SM-P-TR

Manufacturer:Samtec Inc.

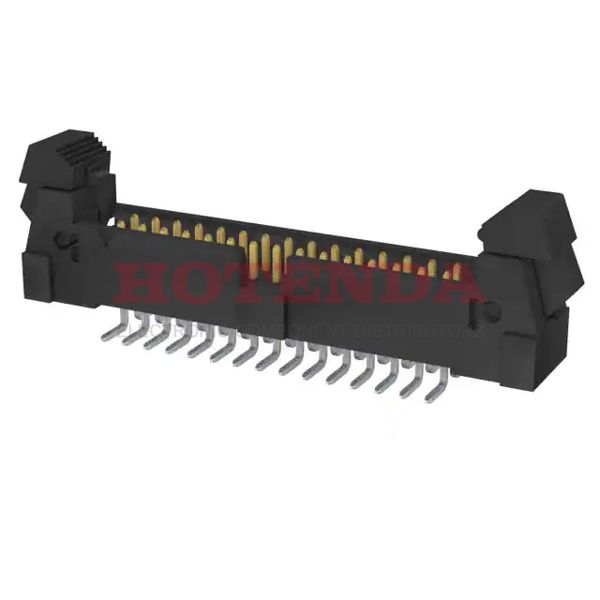

Description:Conn Ejector Header HDR 30 POS 2mm Solder ST SMD T/R

Case Package:SOT-23

Datasheet:EHT-115-01-S-D-SM-P-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Housing Material	Polymer
Mounting Option 1	LATCH & EJECT
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2011
Series	EHT
JESD-609 Code	e3
Feature	Keying Slot, Pick and Place
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	30
Number of Rows	2
Gender	Male
Additional Feature	LATCHED
HTS Code	8536.69.40.40
Fastening Type	Latch Lock/Eject Hooks
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Total Number of Contacts	30
Orientation	Straight
Depth	7.62mm
Insulation Height	0.370 9.40mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Row Spacing - Mating	0.079 (2.00mm)
Shrouding	Shrouded - 4 Wall
Number Of PCB Rows	2
Contact Finish - Post	Tin
Contact Length - Mating	0.120 3.05mm
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.3 inch
Mating Contact Pitch	0.079 inch
Max Current Rating	3A
Polarization Key	POLARIZED HOUSING
PCB Contact Row Spacing	5.334 mm
Length	43.79mm
Contact Finish Thickness - Mating	30.0μin 0.76μm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant
