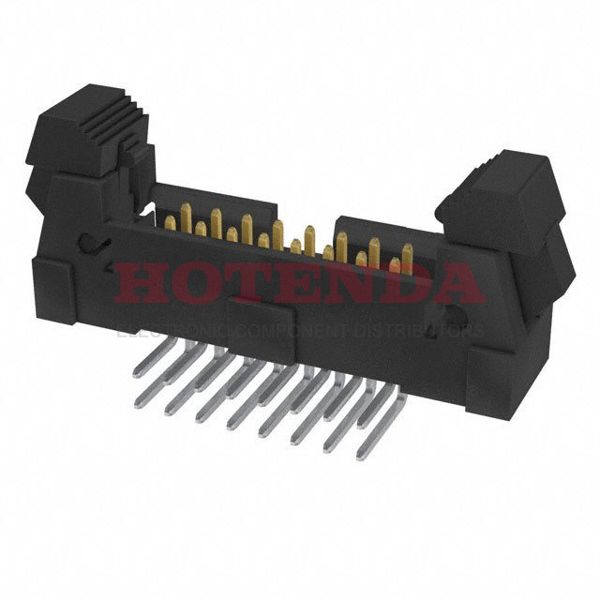

Name: EHT-108-01-L-D-RA-SR
Brand: Samtec Inc.
SKU: EHT-108-01-L-D-RA-SR
Price: 8.02000 USD
Availability: InStock

new-10%

EHT-108-01-L-D-RA-SR

Manufacturer part number:EHT-108-01-L-D-RA-SR

Manufacturer:Samtec Inc.

Description:EHT Series 2-Row Header Solder Phosphor Bronze Tube Through Hole, Right Angle Gold Liquid Crystal Polymer (LCP) 16-Position Board to Cable/Wire 0.300 7.62mm Height

Case Package:SOT-23

Datasheet:EHT-108-01-L-D-RA-SR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Tube
Series	EHT
JESD-609 Code	e3
Feature	Keying Slot, Strain Relief
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Solder
Connector Type	Header
Number of Positions	16
Number of Rows	2
Gender	Male
Fastening Type	Latch Lock/Eject Hooks
Contact Finish - Mating	Gold
Contact Type	Male Pin
Current Rating (Amps)	3A
Insulation Height	0.300 7.62mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Pitch - Mating	0.079 2.00mm
Insulation Color	Black
Row Spacing - Mating	0.079 (2.00mm)
Contact Length - Post	0.120 3.05mm
Shrouding	Shrouded - 4 Wall
Contact Finish - Post	Tin
Contact Length - Mating	0.120 3.05mm
Contact Finish Thickness - Mating	15.0μin 0.38μm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

EHT-108-01-L-D-RA-SR Product Details

EHT-108-01-L-D-RA-SR Overview

It comes in a Header package.Through Hole, Right Angle is the mounting type of the device.We pack the product in a Tube case.This is from the EHT Series.A number of advantages can be derived from its Keying Slot, Strain Relief feature.This part is mounted by Through Hole. -55°C~125°C Operating Temperature is the default.
