Name: EHF-110-01-L-D
Brand: Samtec Inc.
SKU: EHF-110-01-L-D
Price: 6.63000 USD
Availability: InStock

new-10%

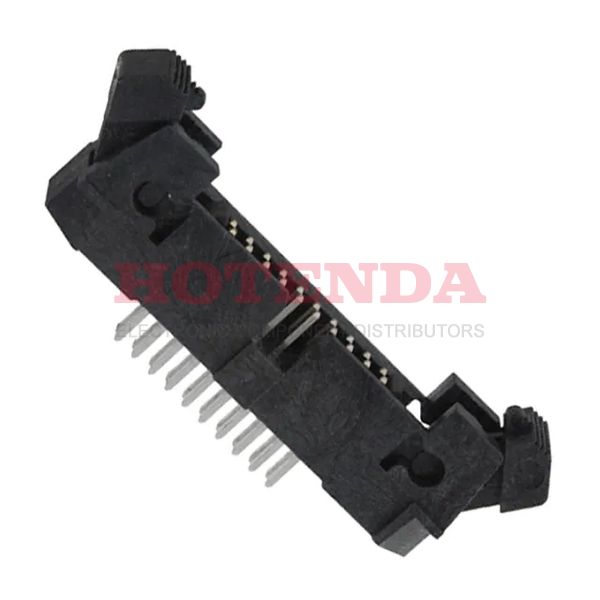

EHF-110-01-L-D

Manufacturer part number:EHF-110-01-L-D

Manufacturer:Samtec Inc.

Description:EHF-110-01-L-D datasheet pdf and Rectangular Connectors - Headers, Male Pins product details from Samtec Inc. stock available on our website

Case Package:SOT-23

Datasheet:EHF-110-01-L-D Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Housing Material	Polymer
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2003
Series	EHF
JESD-609 Code	e3
Feature	Keying Slot
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Header
Number of Positions	20
Number of Rows	2
Gender	Male
Additional Feature	POLARIZED
HTS Code	8536.69.40.40
Fastening Type	Latch Lock/Eject Hooks
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Male Pin
Mixed Contacts	NO
Option	GENERAL PURPOSE
Orientation	Straight
Depth	6.67mm
Insulation Height	0.325 8.25mm
Style	Board to Cable/Wire
Number of Positions Loaded	All
Current Rating	1.75A
Pitch - Mating	0.050 1.27mm
Number of Conductors	ONE
Reliability	COMMERCIAL
Row Spacing - Mating	0.050 (1.27mm)
Contact Length - Post	0.107 2.71mm
Shrouding	Shrouded - 4 Wall
Number Of PCB Rows	2
Contact Finish - Post	Tin
Contact Length - Mating	0.120 3.05mm
PCB Contact Pattern	RECTANGULAR
Housing Color	Black
Overall Contact Length	0.350 8.89mm
Mating Contact Pitch	0.05 inch
Max Current Rating	1.75A
Polarization Key	POLARIZED HOUSING
Length	27.18mm
Plating Thickness	10μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

EHF-110-01-L-D Product Details

EHF-110-01-L-D Overview

The product comes in a package of Header.This device's mounting type is Through Hole.Tube cases are used to package the product.This product is from the EHF Series.Additionally, there are other features, such as POLARIZED.Several benefits come from the Keying Slot feature.There's a Through Hole mount on the part.-55°C~125°C Operating Temperature is used by the device.
