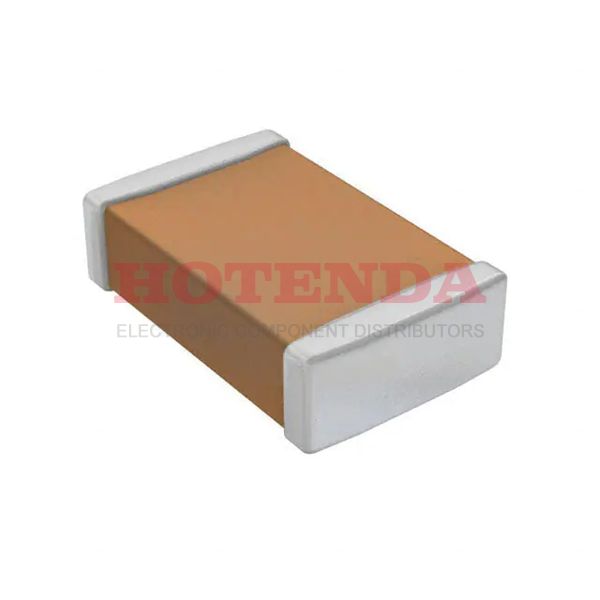

Name: CL05A475MP5NRNC
Brand: Samsung Electro-Mechanics
SKU: CL05A475MP5NRNC
Price: 0.10000 USD
Availability: InStock

new-10%

CL05A475MP5NRNC

Manufacturer part number:CL05A475MP5NRNC

Manufacturer:Samsung Electro-Mechanics

Description:CL05A475MP5NRNC datasheet pdf and Ceramic Capacitors product details from Samsung Electro-Mechanics stock available on our website

Case Package:SOT-23

Datasheet:CL05A475MP5NRNC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	18 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	0402 (1005 Metric)
Terminal Shape	WRAPAROUND
Dielectric Material	CERAMIC
Operating Temperature	-55°C~85°C
Packaging	Tape & Reel (TR)
Published	1997
Series	CL
Size / Dimension	0.039Lx0.020W 1.00mmx0.50mm
Tolerance	±20%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Temperature Coefficient	X5R
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	General Purpose
Voltage - Rated	10V
HTS Code	8532.24.00.20
Capacitance	4.7μF
Packing Method	TR, CARDBOARD PAPER, 7 INCH
Case Code (Metric)	1005
Case Code (Imperial)	0402
Capacitor Type	CERAMIC CAPACITOR
Temperature Characteristics Code	X5R
Multilayer	Yes
Rated (DC) Voltage (URdc)	10V
Height	0.5mm
Length	1mm
Width	0.5mm
Thickness (Max)	0.022 0.55mm
Thickness	558.8μm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

CL05A475MP5NRNC Product Details

CL05A475MP5NRNC Overview

This device's program size/dimension is 0.039Lx0.020W 1.00mmx0.50mm.Its coefficient is X5R and determines the change in resistance per degree of temperature for a substance.
