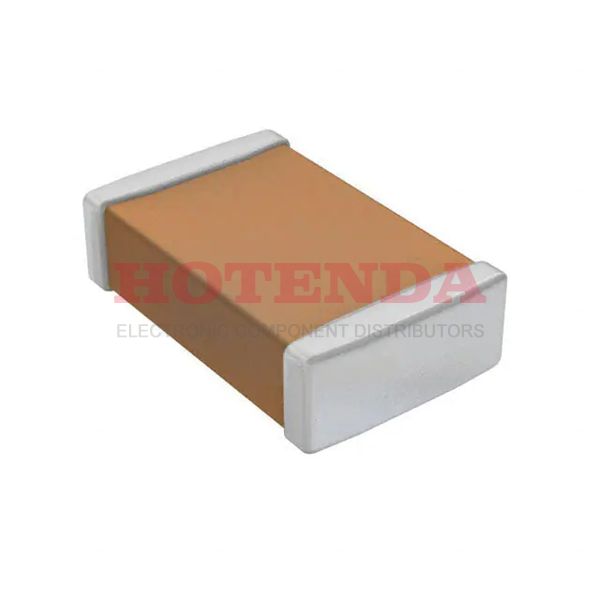

Name: CL03C100DA3GNNC
Brand: Samsung Electro-Mechanics
SKU: CL03C100DA3GNNC
Price: 0.11000 USD
Availability: InStock

new-10%

CL03C100DA3GNNC

Manufacturer part number:CL03C100DA3GNNC

Manufacturer:Samsung Electro-Mechanics

Description:CL03C100DA3GNNC datasheet pdf and Ceramic Capacitors product details from Samsung Electro-Mechanics stock available on our website

Case Package:SOT-23

Datasheet:CL03C100DA3GNNC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	18 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount, MLCC
Package / Case	0201 (0603 Metric)
Terminal Shape	WRAPAROUND
Operating Temperature	-55°C~125°C
Packaging	Tape & Reel (TR)
Published	2008
Series	CL
Size / Dimension	0.024Lx0.012W 0.60mmx0.30mm
Tolerance	±0.5pF
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Temperature Coefficient	C0G NP0
Terminal Finish	Matte Tin (Sn) - with Nickel (Ni) barrier
Applications	General Purpose
HTS Code	8532.24.00.20
Capacitance	10pF
Voltage - Rated DC	25V
Packing Method	TR, CARDBOARD, 7 INCH
Depth	300μm
Case Code (Metric)	0603
Case Code (Imperial)	0201
Capacitor Type	CERAMIC CAPACITOR
Dielectric	C0G
Temperature Characteristics Code	C0G
Multilayer	Yes
Custom Capabilities	Other Tol., Volt, Size, Cap. Available
Height	300μm
Length	0.6mm
Width	0.3mm
Thickness (Max)	0.013 0.33mm
Thickness	330.2μm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

CL03C100DA3GNNC Product Details

CL03C100DA3GNNC Overview

Using this device, the program has a size/dimension of 0.024Lx0.012W 0.60mmx0.30mm.Temperature coefficient of resistance refers to the change in electrical resistance of a substance per degree change in temperature, with C0G NP0 being the highest temperature coefficient.Ceramic capacitor runs on voltage of 25V - Rated DC.
