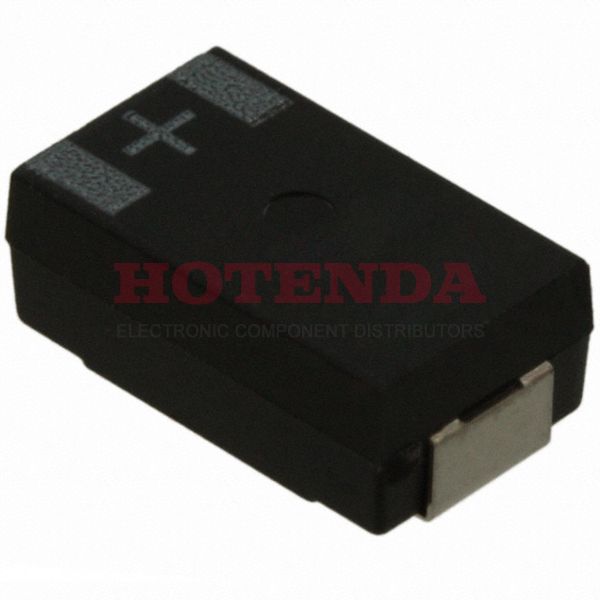

4SW150M

Manufacturer part number:4SW150M

Manufacturer:Rubycon

Description:150μF ±20% 2917 (7343 Metric) 0.106 2.70mm Cut Tape (CT) 9mOhm PC-CON, SW Surface Mount Polymer General Purpose

Case Package:SOT-23

Datasheet:4SW150M Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	2917 (7343 Metric)
Terminal Shape	WRAPAROUND
Surface Mount Land Size	0.287Lx0.169W 7.30mmx4.30mm
Operating Temperature	-55°C~105°C
Packaging	Cut Tape (CT)
Series	PC-CON, SW
Published	2012
Size / Dimension	0.287Lx0.169W 7.30mmx4.30mm
Tolerance	±20%
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	2
ECCN Code	EAR99
Type	Polymer
Terminal Finish	Nickel/Palladium/Gold (Ni/Pd/Au)
Applications	General Purpose
Capacitance	150μF
Voltage - Rated DC	4V
Packing Method	TR
Case Code (Metric)	7343
Case Code (Imperial)	2917
ESR (Equivalent Series Resistance)	9mOhm
Polarity	POLARIZED
Rated (DC) Voltage (URdc)	4V
Lifetime @ Temp	2000 Hrs @ 105°C
Leakage Current	0.024mA
Ripple Current	3.5A
Life (Hours)	2000 hours
Tan Delta	0.1
Ripple Current @ High Frequency	3.5A @ 100kHz
Ripple Current (AC)	3.5A
Height	2.7mm
Height Seated (Max)	0.106 2.70mm
Length	7.3mm
Width	4.3mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

4SW150M Product Details

4SW150M Overview

System power is determined by 3.5A @ 100kHz ripple current on a high frequency.Electrical device with 9mOhm ESR (Equivalent Series Resistance).(DC) voltages rated at 4V achieve stable operation.It is recommended to operate at -55°C~105°C for stable operation.

4SW150M Features

3.5A @ 100kHz ripple current on a high frequency
a 9mOhm in ESR (Equivalent Series Resistance) in this electrical device
a rated voltage (DC) of 4V
an operating temperature of -55°C~105°C
