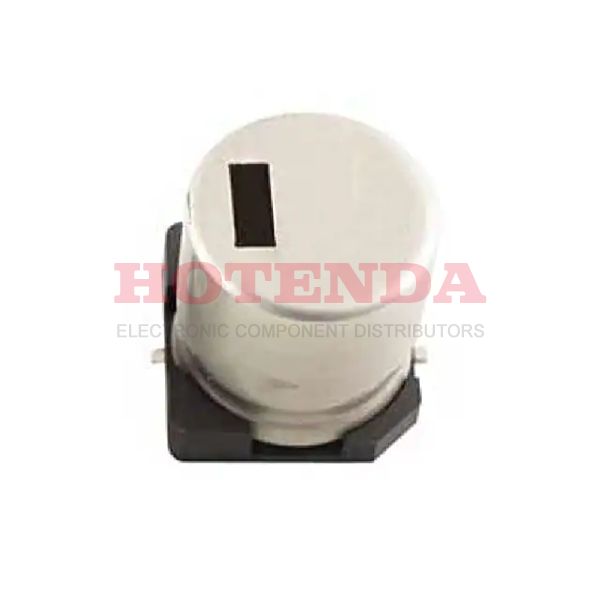

35TRV1500M18X16.5 Overview
Ripple current at full charge is 1.55A @ 100kHz.For 64mOhm to fully function, the equivalent series resistance has to be provided.It is 930mA @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 0.669 17.00mm.Voltage - Rated DC - is 35V.It is recommended that the operating temperature be kept at -40°C~105°C to achieve high efficiency.
35TRV1500M18X16.5 Features
the ripple current is 1.55A @ 100kHz.
the ripple current is 930mA @ 120Hz.
voltage - Rated DC of 35V
an operating temperature of -40°C~105°C
35TRV1500M18X16.5 Applications
There are a lot of Rubycon
35TRV1500M18X16.5 applications of aluminum electrolytic capacitors.
- Power supplies
- Computer motherboards
- Uninterruptible power supplies
- Frequency converters
- Computer
- Telecommunication
- Industrial systems
- Smoothing and filtering applications
- Standard and switched mode power supplies
- Energy storage in pulse systems
