UMZ18NFHT106

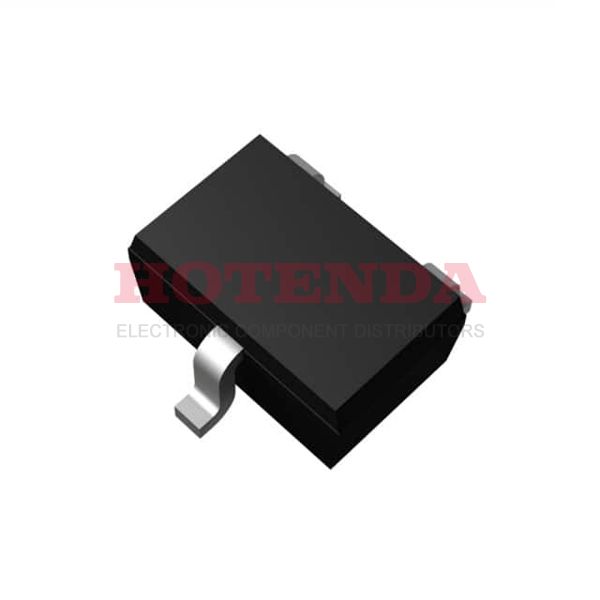

  • UMZ18NFHT106 - 1 Pair Common Anode ZENER DIODE ±2.19% 18V 2.1% Surface Mount SC-70, SOT-323
  • UMZ18NFHT106 - 1 Pair Common Anode ZENER DIODE ±2.19% 18V 2.1% Surface Mount SC-70, SOT-323

UMZ18NFHT106

UMZ18NFHT106

ROHM Semiconductor

1 Pair Common Anode ZENER DIODE ±2.19% 18V 2.1% Surface Mount SC-70, SOT-323

SOT-23

UMZ18NFHT106 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mounting Type Surface Mount
Package / Case SC-70, SOT-323
Surface MountYES
Operating Temperature150°C TJ
Series Automotive, AEC-Q101
Tolerance ±2.19%
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
HTS Code8541.10.00.50
Configuration 1 Pair Common Anode
Power Dissipation-Max 0.2W
Diode Type ZENER DIODE
Current - Reverse Leakage @ Vr 100nA @ 13V
Power - Max 200mW
Reference Voltage18V
Voltage - Zener (Nom) (Vz) 18V
Voltage Tol-Max 2.1%
Working Test Current 5mA
RoHS StatusROHS3 Compliant
In-Stock:15799 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.48000$0.48
500$0.4752$237.6
1000$0.4704$470.4
1500$0.4656$698.4
2000$0.4608$921.6
2500$0.456$1140

UMZ18NFHT106 Product Details

UMZ18NFHT106 Overview


A wide range of 2.1% reverse voltages can be handled by this device.A 5mA working test voltage is applied to this electronic part.As for tolerancing, this part has a tolerance of ±2.19%.

UMZ18NFHT106 Features


5mA working test voltage
±2.19% tolerance


UMZ18NFHT106 Applications


There are a lot of ROHM Semiconductor
UMZ18NFHT106 applications of zener diode arrays.
