UMZ18KFHTL

  • UMZ18KFHTL - 2 Independent ZENER DIODE ±2.2% 18V 2 Elements 4 Terminations UNIDIRECTIONAL Surface Mount SC-82A, SOT-343
  • UMZ18KFHTL - 2 Independent ZENER DIODE ±2.2% 18V 2 Elements 4 Terminations UNIDIRECTIONAL Surface Mount SC-82A, SOT-343

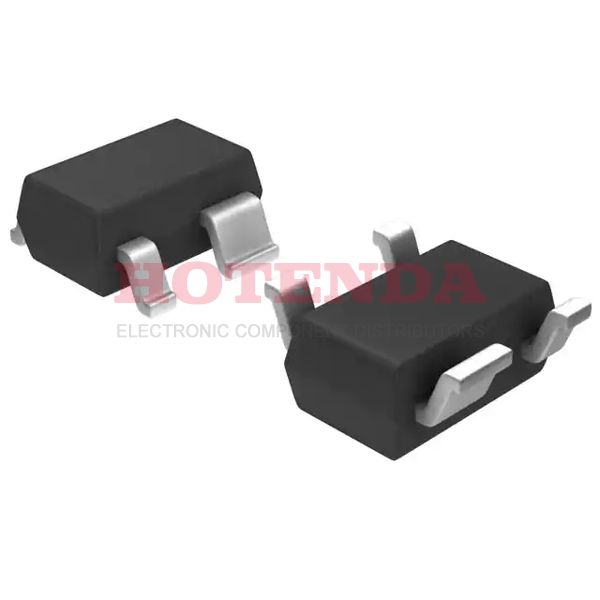

UMZ18KFHTL

UMZ18KFHTL

ROHM Semiconductor

2 Independent ZENER DIODE ±2.2% 18V 2 Elements 4 Terminations UNIDIRECTIONAL Surface Mount SC-82A, SOT-343

SOT-23

UMZ18KFHTL Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Mounting Type Surface Mount
Package / Case SC-82A, SOT-343
Surface MountYES
Diode Element Material SILICON
Operating Temperature150°C TJ
PackagingCut Tape (CT)
Series Automotive, AEC-Q101
Tolerance ±2.2%
Part StatusNot For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Additional FeatureHIGH RELIABILITY
HTS Code8541.10.00.50
Terminal Position DUAL
Terminal FormGULL WING
Peak Reflow Temperature (Cel) 260
Time@Peak Reflow Temperature-Max (s) 10
JESD-30 Code R-PDSO-G4
Number of Elements 2
Polarity UNIDIRECTIONAL
Configuration 2 Independent
Power Dissipation-Max 0.2W
Diode Type ZENER DIODE
Current - Reverse Leakage @ Vr 100nA @ 13V
Power - Max 200mW
Reference Voltage18V
Voltage - Zener (Nom) (Vz) 17.96V
Working Test Current 5mA
RoHS StatusROHS3 Compliant
In-Stock:22129 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.350000$0.35
10$0.330189$3.30189
100$0.311499$31.1499
500$0.293867$146.9335
1000$0.277233$277.233

UMZ18KFHTL Product Details

UMZ18KFHTL Overview


These electronic parts are supplied with a voltage of 5mA for working tests.As for tolerances, this part has a ±2.2%.

UMZ18KFHTL Features


5mA working test voltage
±2.2% tolerance


UMZ18KFHTL Applications


There are a lot of ROHM Semiconductor
UMZ18KFHTL applications of zener diode arrays.
