Name: SMLZ13BDTT86A
Brand: ROHM Semiconductor
SKU: SMLZ13BDTT86A
Availability: InStock

new-10%

SMLZ13BDTT86A

Manufacturer part number:SMLZ13BDTT86A

Manufacturer:ROHM Semiconductor

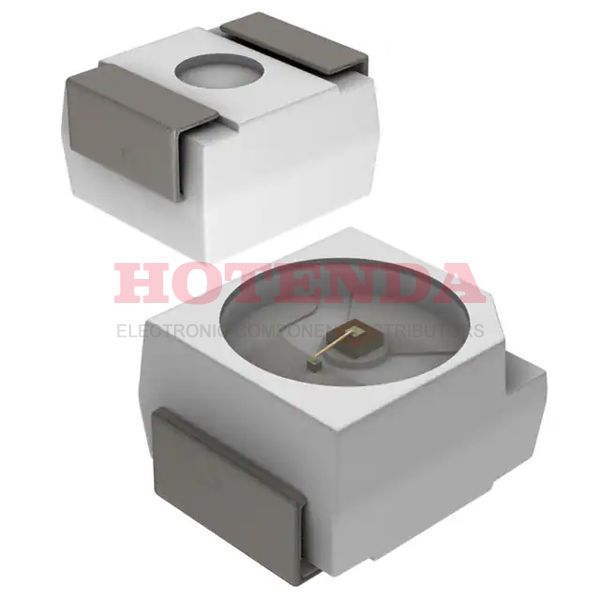

Description:LED BLUE CLEAR 2PLCC SMD

Case Package:SOT-23

Datasheet:SMLZ13BDTT86A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	2-PLCC
Number of Pins	2
Packaging	Tape & Reel (TR)
Published	2012
Series	SML-Z1
Size / Dimension	3.20mm Lx2.80mm W
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Terminal Finish	Gold (Au) - with Nickel (Ni) barrier
Color	Blue
Subcategory	Visible LEDs
Base Part Number	SML-Z13
Operating Temperature (Min)	-40°C
Configuration	Standard
Voltage - Forward (Vf) (Typ)	3.2V
Current - Test	20mA
Lens Style	Round with Flat Top
Lens Size	2.40mm Dia
Luminous Intensity	280 mcd
Lens Transparency	Clear
Lens Color	Colorless
Forward Current-Max	0.03A
Wavelength - Dominant	470nm
Number of LEDs	1
Reverse Voltage-Max	5V
Height	2.05mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

About SMLZ13BDTT86A

The SMLZ13BDTT86A from ROHM Semiconductor is a high-performance microcontroller designed for a wide range of embedded applications. This component features LED BLUE CLEAR 2PLCC SMD.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the SMLZ13BDTT86A, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
