BU4S71G2-TR Overview

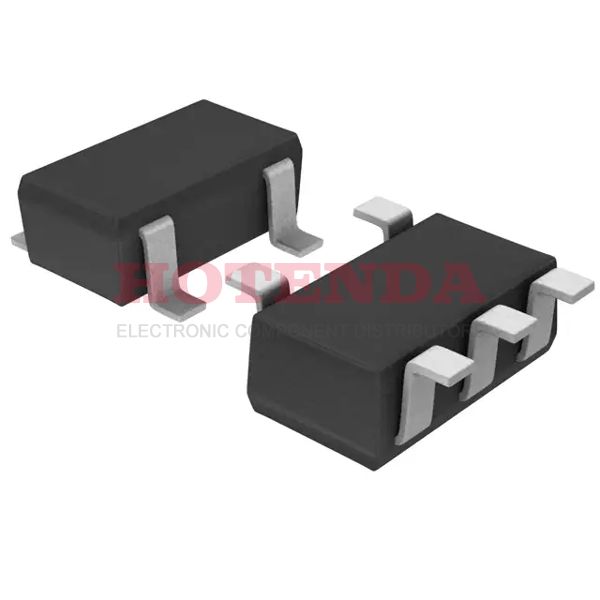

The part can be shipped overseas conveniently because it is packaged in SC-74A, SOT-753. In order to provide high reliability, an advanced packaging method Tape & Reel (TR) is used. As a result, it works on the principle of OR Gate. The part must have a voltage of 3V~16V in order to function properly. Operating temperature around -40°C~85°C extended. Surface Mount is the mounting position of the part. In the low and high states of output current, the current is 3.4mA 3.4mA. This is part of the 4S series. In total, there are 5 terminations. 1 functions in the part enhance the user experience significantly. Use BU4S71 to search for device variants. There are 5 pins injected into the part body. Many applications use this logic device with Surface Mount mounting. The functions of 5 pins can be found in the datasheets. There are 2 inputs on this part. When the part is quiescent, 1μA current flows through it. Devices require a minimum voltage of 3V. There is an industry TAPE AND REEL method included. 3.4mA is the device's output current rating. A logical operation through a gate of 1.
BU4S71G2-TR Features
OR Gate Logic Type
Operating Temperature: -40°C~85°C
Quiescent Current: 1μA
Output Current: 3.4mA
1 Gates
BU4S71G2-TR Applications
There are a lot of ROHM Semiconductor
BU4S71G2-TR Gates and Inverters applications.
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
- VCR
