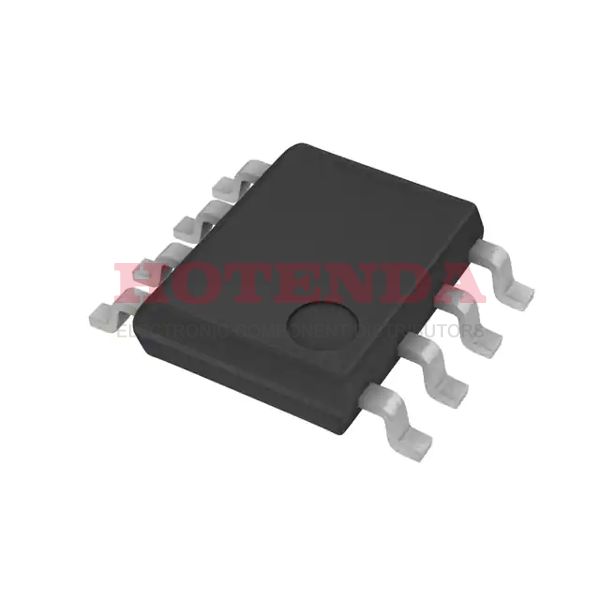

BM1P101FJ-E2 Overview
There is a ac to dc converter embedded in package 8-SOIC (0.154, 3.90mm Width) .The AC/DC power converter Tape & Reel (TR) is available for this product.In this case, the AC/DC converter is mounted in the way of Surface Mount .It is necessary to operate the ac dc converter at a temperature of -40°C~85°C TA °C in order for it to perform properly.Analog ICs of type SWITCHING CONTROLLER are used in this AC DC converter.100kHz is the switching frequency.A range of 8.9V~26V supply voltages (Vcc/Vdd) can be used.There are 8 pins on the ac/dc converter.The ac dc converters are suitable to mount by Surface Mount .There are 1 outputs to be run.An input voltage of 26V is available for powering the AC to DC converter.An input voltage of less than 8.9V volts can be used with the AC to DC inverter.The interface IC conducts when the supply voltage is 26V .It uses Fixed as an output.
BM1P101FJ-E2 Features
Packaged with 8-SOIC (0.154, 3.90mm Width)
Switching Frequency at 100kHz
With 8 pins
Operating Supply Voltage at the range of 26V
Output Type : Fixed
BM1P101FJ-E2 Applications
There are a lot of ROHM Semiconductor BM1P101FJ-E2 AC DC Converters applications.
- Air conditioners
- Rice Cooker
- Humidifier
- Power Adaptors
- Adapter/Charger for Cell
- Handheld/Battery-Powered Systems
- Air Conditioning
- Battery Chargers
- Utility meters
- Remotely-controlled appliances
