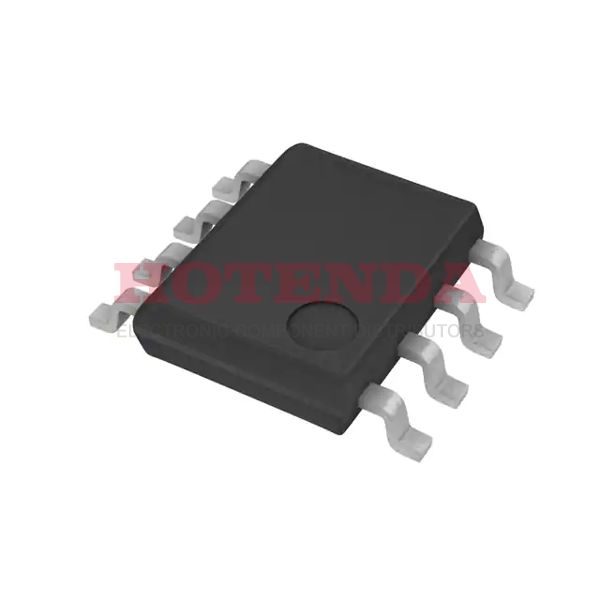

BD9329EFJ-E2 Overview
optimized performance is achieved by utilizing the Tape & Reel (TR) package in this voltage regulator. The harley voltage regulator is available as a 8-SOIC (0.154, 3.90mm Width) package to save space. There are 1 outputs on DC DC switching regulator. As you can see, this DC DC switching regulator generates Adjustable output on its output pins. As the name implies, this voltage regulator 12v is designed for mounting on a Surface Mount bracket. During switching regulator operation, the operating temperature should remain at -40°C~85°C TA. A DC-DC switching regulator such as this one switches at 380kHz. There is a adjusting voltage regulator's voltage output (Min/Fixed) of 0.9V. This voltage regulator 12v offers maximum design flexibility with an output current of 3A. There is a voltage regulator maximum input voltage of 18V. As a member of the BD9329 family of DC/DC regulators, this is a DC/DC regulator. Voltage can be produced at 12.6V volts by voltage regulator. In order for this switching regulator to work properly, the output voltage should be at least 900mVV. A maximum voltage of 12.6V can be obtained from the regulator voltage. The 4.2V V dc to dc voltage regulator's minimum supply voltage ensures reliable performance. The voltage regulator operates with a supply current of 1.2mAmps.
BD9329EFJ-E2 Features
1 outputs
BD9329EFJ-E2 Applications
There are a lot of ROHM Semiconductor BD9329EFJ-E2 Voltage Regulators applications.
- Geothermal power
- seismic instrument power circuits
- Printing equipment
- Computer-related products
- Gear/thread machining machines
- Correction machines
- Constant current circuits
- Surge protection circuits
- Bending machines
- Smoke exhaust equipment
