BD3570FP-E2 Overview

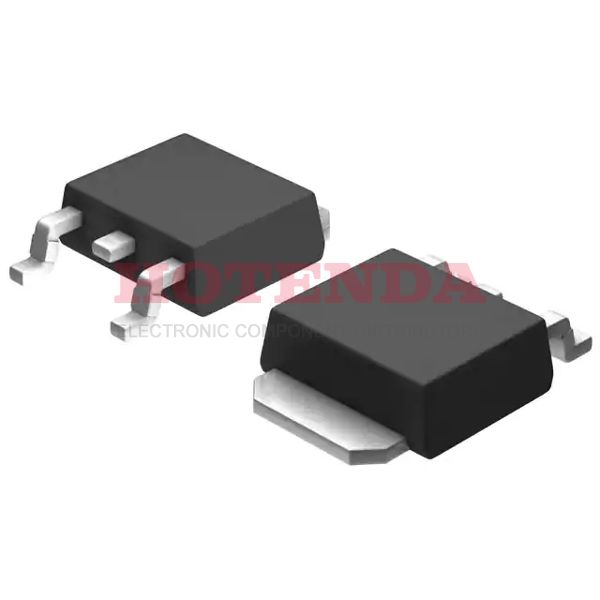

Tape & Reel (TR) cases are used for delivery. The Liner regulator IC is packaged in TO-252-3, DPak (2 Leads + Tab), SC-63 case. On the Linear IC itself, there are 2 terminations. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 500mA from this regulator IC. There are a total of 4 pins on this board. There are 1 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. There is a dropout voltage of 10 volts on this IC regulator. Chips have 3 pins. For your information, the basic part number for this regulator IC is BD3570. TAPE AND REEL is the way in which the voltage regulator IC is packed. In order to meet the operation requirements, its maximal output current reaches 500mA. The top supply voltage can be 50V volts.
BD3570FP-E2 Features
250mV dropout voltage
TAPE AND REEL method of packing
BD3570FP-E2 Applications
There are a lot of ROHM Semiconductor
BD3570FP-E2 Linear Voltage Regulators applications.
- Battery-powered device
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
