BD3522EFV-E2 Overview

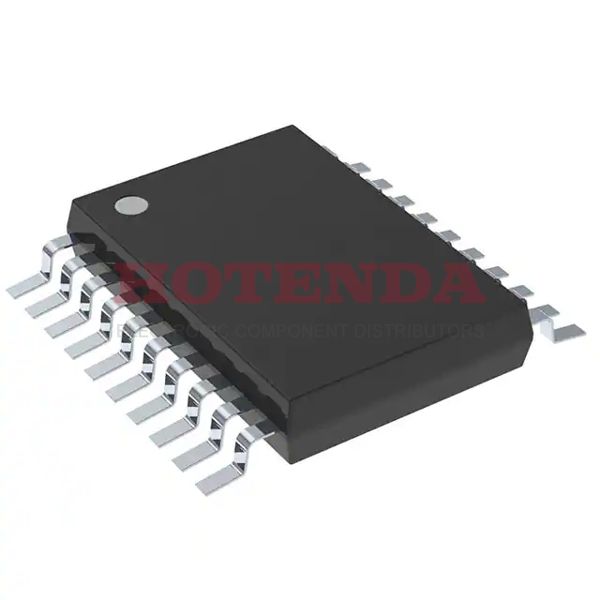

A Tape & Reel (TR) case is used to deliver the Voltage Regulated IC. A 20-VSSOP (0.173, 4.40mm Width) Exposed Pad case is used for packaging. As you can see, the IC chip has 20 terminations. Regulator IC chip's output type is Adjustable. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Surface Mount varies. -10°C~100°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. There are 20 pins in total in this voltage regulator IC. It has 1 outputs to ensure that the performance of this regulator is prompt and sufficient. 20 pins are on the chip. For your information, this regulator's basic part number is BD3522. There is a way of packing the regulator that is called TAPE AND REEL. To meet operation requirements, the voltage regulator IC has a maximum output current of 4A. Using an 5.5V-volt supply at the top, the IC regulator can operate.
BD3522EFV-E2 Features
TAPE AND REEL method of packing
BD3522EFV-E2 Applications
There are a lot of ROHM Semiconductor
BD3522EFV-E2 Linear Voltage Regulators applications.
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
