BA63JC5T Overview

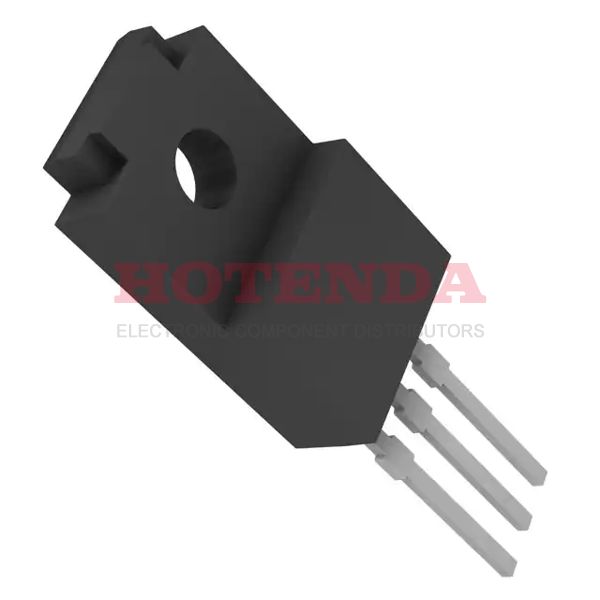

The package is delivered in a Tube case. In order to package the IC voltage regulator, a TO-220-3 Full Pack case is used. On the Voltage regulator IC, there are 3 terminations that can be connected. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Through Hole can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~105°C degrees for it to function. As you can see, this regulator's output function is configured to be Positive. A total of 3 pins are located on this chip, making it the size of a standard chip. The regulator has a total of 1 outputs to make sure that it delivers prompt, sufficient outputs. A dropout voltage of 10 volts is what makes it a dropout voltage. There is a maximum output current of 1.5A for this regulator to meet the operational requirements.
BA63JC5T Features
300mV dropout voltage
BA63JC5T Applications
There are a lot of ROHM Semiconductor
BA63JC5T Linear Voltage Regulators applications.
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
- Measurement and control euipment
