BA4560F-E1 Overview

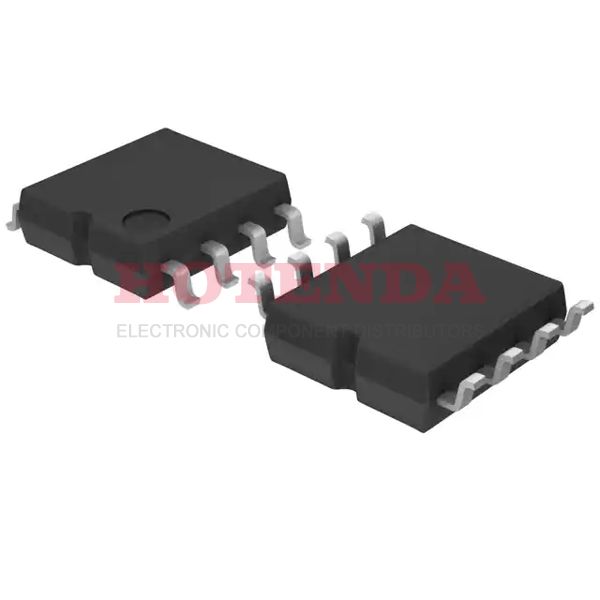

Op amp is packaged in 8-SOIC (0.173, 4.40mm Width) case. This is a General Purpose type op amp. Linear amplifier is delivered in a Tape & Reel (TR) case. There have been a total of 8 terminations over the past year. Buffer amplifier has a total of 8 pins. I would like you to keep in mind that this buffer amplifier needs to be run at a voltage of 18V. I would like to specify that this buffer amplifier belongs to the Operational Amplifier-type of devices. 8 pins are located on the operational amplifiers. In terms of input offset voltage, operational amplifier rates 500μV. It is recommended that this electronic component be mounted using the Surface Mount mounting type. In terms of operating temperatures, this buffer amplifier works very well at a temperature of around -40°C~85°C . Using an 4mA supply current, this operational amplifier ics can be operated. 100dB should be the voltage gain. On this instrumentation amplifier, there are 2 circuits that are connected together. The operating supply voltage of the buffer op amp is rated at 15V.

BA4560F-E1 Features

8 Pins
supply voltage of 18V
100dB voltage gain

BA4560F-E1 Applications

There are a lot of ROHM Semiconductor BA4560F-E1 Instrumentational OP Amps applications.

• Proportional counter tubes
• Voltage regulation circuit
• Hand-held batteries
• Measurements of Wheatstone bridge
• Band-pass filter
• Television
• Multiplication circuits
• Video computer boards
• Commercial audio systems
• High input resistance broadband
