Name: Z8F2402AR020EC
Brand: Rochester Electronics, LLC
SKU: Z8F2402AR020EC
Availability: InStock

new-10%

Z8F2402AR020EC

Manufacturer part number:Z8F2402AR020EC

Manufacturer:Rochester Electronics, LLC

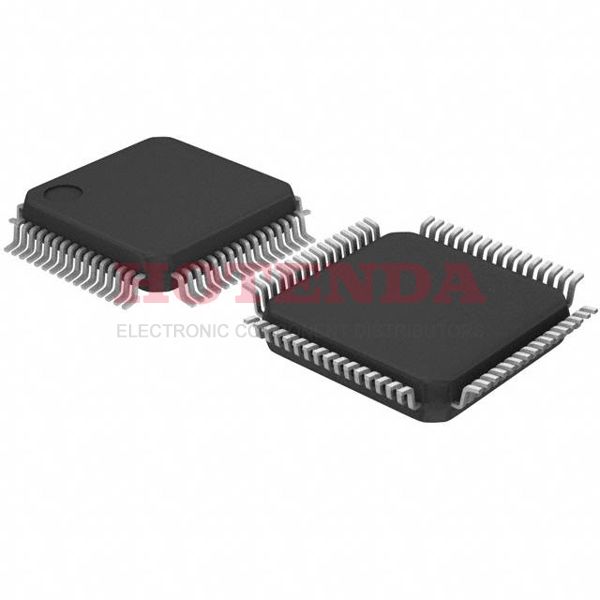

Description:24KB 24K x 8 FLASH eZ8 8-Bit Microcontroller Encore!® Series 3.3V 64-LQFP

Case Package:SOT-23

Datasheet:Z8F2402AR020EC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	64-LQFP
Surface Mount	YES
Operating Temperature	-40°C~105°C TA
Packaging	Tray
Series	Encore!®
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
Terminal Finish	TIN LEAD
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	225
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Reach Compliance Code	unknown
Time@Peak Reflow Temperature-Max (s)	30
Pin Count	64
JESD-30 Code	S-PQFP-G64
Supply Voltage-Max (Vsup)	3.6V
Supply Voltage-Min (Vsup)	3V
Oscillator Type	Internal
Number of I/O	46
Speed	20MHz
RAM Size	2K x 8
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	eZ8
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Clock Frequency	20MHz
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	24KB 24K x 8
Connectivity	I2C, IrDA, SPI, UART/USART
Bit Size	8
Data Converter	A/D 12x10b
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
DAC Channels	NO
Length	10mm
Height Seated (Max)	1.6mm
Width	10mm
RoHS Status	Non-RoHS Compliant

Z8F2402AR020EC Product Details

Z8F2402AR020EC Overview

64-LQFP-packages are available. There are 46 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 8-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~105°C TA for this Microcontroller. An electrical component of this type belongs to the Encore!® series. This program memory has a size of 24KB 24K x 8, which indicates what the size of the program memory is. eZ8 Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER power supply/socket/peripheral ICs category. This chip has a total of 64 terminations on MCU chip. You get a 8-bit size. This Microcontroller chip is powered by 3.3V volts. There are YES DMA channels on this Microcontroller chip. Using the PWM channel YES, the device works with the motor. It has 64 pins in total. It's got a 20MHz clock.
