SS12T3

  • SS12T3 - SS12T3 datasheet pdf and Diodes - Rectifiers - Single product details from Rochester Electronics, LLC stock available on our website
  • SS12T3 - SS12T3 datasheet pdf and Diodes - Rectifiers - Single product details from Rochester Electronics, LLC stock available on our website

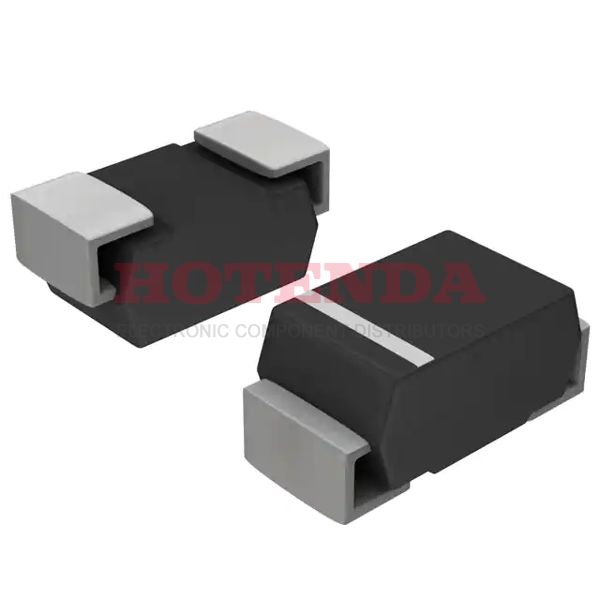

SS12T3

SS12T3

Rochester Electronics, LLC

SS12T3 datasheet pdf and Diodes - Rectifiers - Single product details from Rochester Electronics, LLC stock available on our website

SOT-23

SS12T3 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mounting Type Surface Mount
Package / Case DO-214AC, SMA
Surface MountYES
Diode Element Material SILICON
PackagingTape & Reel (TR)
JESD-609 Code e0
Pbfree Code no
Part StatusObsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Terminal Finish TIN LEAD
Additional FeatureFREE WHEELING DIODE
Terminal Position DUAL
Terminal FormC BEND
Peak Reflow Temperature (Cel) 240
[email protected] Reflow Temperature-Max (s) 30
Pin Count2
JESD-30 Code R-PDSO-C2
Qualification StatusCOMMERCIAL
Number of Elements 1
Configuration SINGLE
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Schottky
Current - Reverse Leakage @ Vr 45μA @ 20V
Voltage - Forward (Vf) (Max) @ If 470mV @ 1A
Operating Temperature - Junction -55°C~150°C
Output Current-Max 1A
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 1A
Rep Pk Reverse Voltage-Max 20V
RoHS StatusNon-RoHS Compliant
In-Stock:92272 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.018600$0.0186
500$0.013676$6.838
1000$0.011397$11.397
2000$0.010456$20.912
5000$0.009772$48.86
10000$0.009090$90.9
15000$0.008791$131.865
50000$0.008644$432.2

SS12T3 Product Details

SS12T3 Overview


The maximum output current is 1A.

SS12T3 Features


1A is the maximum value

SS12T3 Applications


There are a lot of Rochester Electronics, LLC SS12T3 applications of single-phase diode rectifier.

  • Battery chargers
  • DC motor control and drives
  • Reverse Polarity Protection
  • Switching Diode
  • Power converters
  • Ultra High-Speed Switching
  • Freewheeling
  • Welders
  • Recirculating Diode
  • Polarity Protection Diode
