Name: REG103GA-3
Brand: Rochester Electronics, LLC
SKU: REG103GA-3
Price: 6.90000 USD
Availability: InStock

new-10%

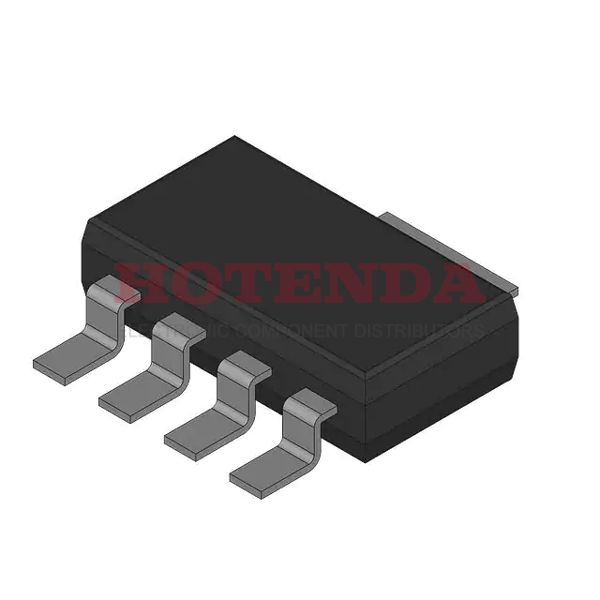

REG103GA-3

Manufacturer part number:REG103GA-3

Manufacturer:Rochester Electronics, LLC

Description:Enable Fixed PMIC 6 SOT-223-6

Case Package:SOT-23

Datasheet:REG103GA-3 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	SOT-223-6
Surface Mount	YES
Operating Temperature	-40°C~85°C
Packaging	Tube
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	2 (1 Year)
Number of Terminations	6
Terminal Finish	NICKEL PALLADIUM GOLD
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	6
JESD-30 Code	R-PDSO-G6
Current - Supply (Max)	1.3mA
Voltage - Input (Max)	15V
Output Type	Fixed
Output Configuration	Positive
Current - Output	500mA
Control Features	Enable
Output Voltage 1	3V
Input Voltage (Min)	3.2V
Voltage - Output (Min/Fixed)	3V
Number of Regulators	1
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	0.7mA
Voltage Dropout (Max)	0.28V @ 500mA
PSRR	65dB (120Hz)
Output Voltage1-Max	3.06V
Output Voltage1-Min	2.94V
Length	6.5mm
Width	3.5mm
RoHS Status	ROHS3 Compliant

REG103GA-3 Product Details

REG103GA-3 Overview

The package contains a Tube case. In SOT-223-6 cases, it is packaged. This gadget has 6 terminations on it, each with a different function. Fixed is the IC Voltage Regulator's output type. A total of 1 regulators are implemented in this eletric component. Surface Mount operating temperature varies depending on the IC Voltage Regulator. The Regulator IC chip is set to operate at -40°C~85°C degrees. It has been configured that the output function of this IC regulator is Positive. There is an output of 500mA at the moment. 6 pins make up the sum of this IC voltage regulator.
