Name: ADUC842BCP62-5
Brand: Rochester Electronics, LLC
SKU: ADUC842BCP62-5
Availability: InStock

new-10%

ADUC842BCP62-5

Manufacturer part number:ADUC842BCP62-5

Manufacturer:Rochester Electronics, LLC

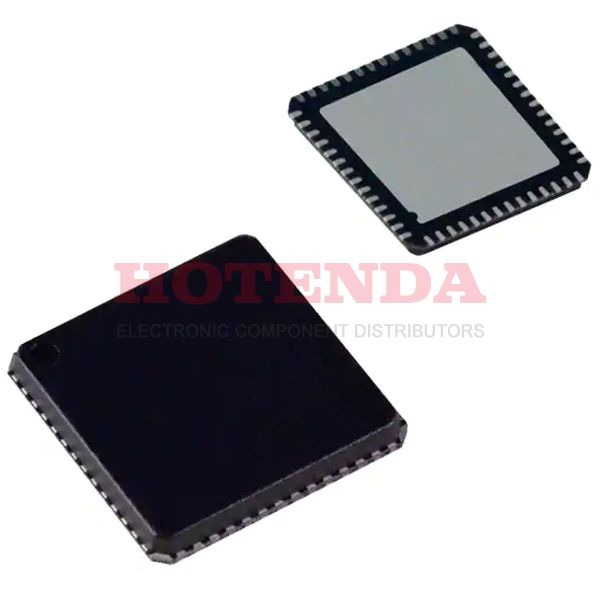

Description:62KB 62K x 8 FLASH 8052 8-Bit Microcontroller MicroConverter® ADuC8xx Series 5V 56-VFQFN Exposed Pad, CSP

Case Package:SOT-23

Datasheet:ADUC842BCP62-5 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	56-VFQFN Exposed Pad, CSP
Surface Mount	YES
Operating Temperature	-40°C~85°C
Packaging	Tray
Series	MicroConverter® ADuC8xx
JESD-609 Code	e0
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	56
Terminal Finish	TIN LEAD
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	240
Supply Voltage	5V
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	30
Pin Count	56
JESD-30 Code	S-XQCC-N56
Supply Voltage-Max (Vsup)	5.25V
Supply Voltage-Min (Vsup)	4.75V
Oscillator Type	Internal
Number of I/O	32
Speed	16.78MHz
RAM Size	2.25K x 8
Voltage - Supply (Vcc/Vdd)	4.75V~5.25V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	8052
Peripherals	DMA, PSM, PWM, Temp Sensor, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	62KB 62K x 8
Connectivity	I2C, SPI, UART/USART
Bit Size	8
Data Converter	A/D 8x12b; D/A 2x12b
Has ADC	YES
DMA Channels	NO
PWM Channels	YES
DAC Channels	YES
Address Bus Width	24
External Data Bus Width	8
Length	8mm
Height Seated (Max)	1mm
Width	8mm
RoHS Status	Non-RoHS Compliant

ADUC842BCP62-5 Product Details

ADUC842BCP62-5 Overview

56-VFQFN Exposed Pad, CSP-packages are available. There are 32 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 8-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~85°C for this Microcontroller. An electrical component of this type belongs to the MicroConverter® ADuC8xx series. This program memory has a size of 62KB 62K x 8, which indicates what the size of the program memory is. 8052 Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER power supply/socket/peripheral ICs category. This chip has a total of 56 terminations on MCU chip. You get a 8-bit size. This Microcontroller chip is powered by 5V volts. There are NO DMA channels on this Microcontroller chip. Using the PWM channel YES, the device works with the motor. It has 56 pins in total.
