Name: ADUC814ARU
Brand: Rochester Electronics, LLC
SKU: ADUC814ARU
Availability: InStock

new-10%

ADUC814ARU

Manufacturer part number:ADUC814ARU

Manufacturer:Rochester Electronics, LLC

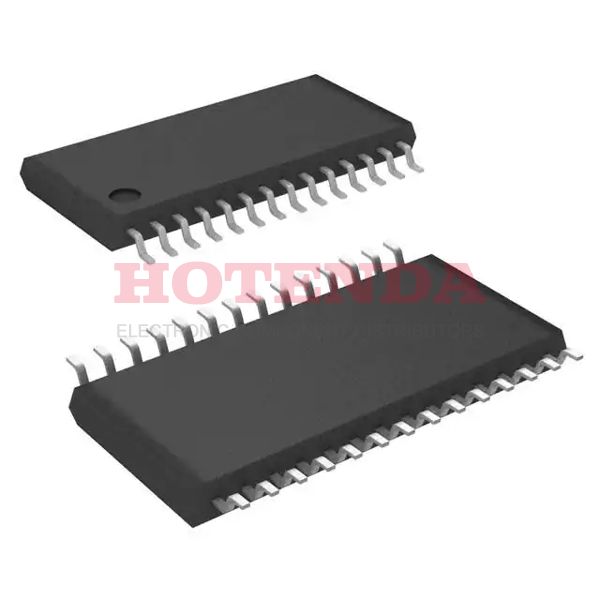

Description:8KB 8K x 8 FLASH 8052 8-Bit Microcontroller MicroConverter® ADuC8xx Series 3V 28-TSSOP (0.173, 4.40mm Width)

Case Package:SOT-23

Datasheet:ADUC814ARU Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	28-TSSOP (0.173, 4.40mm Width)
Surface Mount	YES
Operating Temperature	-40°C~125°C TA
Packaging	Tube
Series	MicroConverter® ADuC8xx
JESD-609 Code	e0
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	28
Terminal Finish	TIN LEAD
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Supply Voltage	3V
Terminal Pitch	0.65mm
Reach Compliance Code	unknown
Time@Peak Reflow Temperature-Max (s)	30
Pin Count	28
JESD-30 Code	R-PDSO-G28
Supply Voltage-Max (Vsup)	3.3V
Supply Voltage-Min (Vsup)	2.7V
Oscillator Type	Internal
Number of I/O	17
Speed	16.78MHz
RAM Size	256 x 8
Voltage - Supply (Vcc/Vdd)	2.7V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	8052
Peripherals	POR, PSM, Temp Sensor, WDT
Clock Frequency	16.78MHz
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	8KB 8K x 8
Connectivity	I2C, SPI, UART/USART
Bit Size	8
Data Converter	A/D 6x12b; D/A 2x12b
Has ADC	YES
DMA Channels	NO
PWM Channels	NO
DAC Channels	YES
EEPROM Size	640 x 8
Length	9.7mm
Height Seated (Max)	1.2mm
Width	4.4mm
RoHS Status	Non-RoHS Compliant

ADUC814ARU Product Details

ADUC814ARU Overview

The package has a 28-TSSOP (0.173, 4.40mm Width) shape. With 17 I/Os, it's pretty good. The Microcontroller's mounting type is Surface Mount and this IC chip has the following features. As the name implies, this Microcontroller is based on the 8-Bit core. As far as its program memory type is concerned, it is FLASH. Temperatures within -40°C~125°C TA range are measured by this Microcontroller. The MicroConverter® ADuC8xx series is comprised of this electrical component. The electronic part has a program memory size of 8KB 8K x 8. There's a 8052 Core Processor inside. The IC chip fits into the MICROCONTROLLER uPs/uCs/Peripheral ICs category. There are 28 terminations on the IC chip. 8-bits are the size of the data that comes with MCU. A 3V volt supply is provided by the Microcontroller chip. In addition to that, MCU chip has NO DMA channels. There are a total of NO channels in the device. A total of 28 pins are included in the package. The clock frequency is 16.78MHz.
