ADE7768ARZ Overview

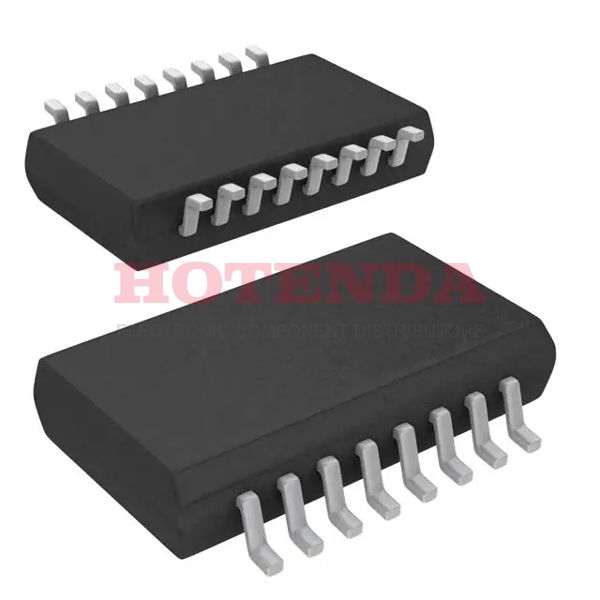

Tubeipped up in a box. A package named 16-SOIC (0.154, 3.90mm Width). It can also be used as a Single Phase meter. Currently available in Surface Mount. Temperature at -40°C~85°C is extended during operation. 4.75V~5.25V power supply is used to power it. . Its low-level I/O ports are powered by a voltage of 0.5V 0.8V. This device is capable of delivering voltages of 2.4V 4V 4.5V for high-level I/Os on its pins. There are 16 terminations on the part. A powerful PMIC analog POWER SUPPLY SUPPORT CIRCUIT IC. The normal voltage required for this part is 5V. There is a need for users to be aware that this device can be operated only with a voltage level of 4.75V or higher. In order to keep the maximum voltage that goes to the device under 5.25V, the voltage should be kept as low as possible. The 16 pins are connected by 16 pins. Basically, it's a 5mA device. This logic device consists of 2 channels.
ADE7768ARZ Features
Single Phase meter.
POWER SUPPLY SUPPORT CIRCUIT analog IC.
2 channels.
ADE7768ARZ Applications
There are a lot of Rochester Electronics, LLC ADE7768ARZ Energy Metering ICs applications.
- Industrial Lighting Power Monitoring
- Industrial Equipment
- Subsystem Power Measurement
- Power monitoring/power budgeting
- PCs/servers
- Poly-phase energy meters of class 0.5S and class 1
- Telecommunications and data communications equipment
- Telecom Infrastructure
- Real-Time Measurement of Input Power for AC/DC Supplies
- Power monitoring instruments
