2pA 80 dB Instrumentational OP Amps 0.005μA 5V~36V ±2.5V~18V 8 Pins 8-DIP (0.300, 7.62mm)
SOT-23
AD820AN Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Mounting Type
Through Hole
Package / Case
8-DIP (0.300, 7.62mm)
Surface Mount
NO
Operating Temperature
-40°C~85°C
Packaging
Tube
JESD-609 Code
e0
Pbfree Code
no
Part Status
Obsolete
Moisture Sensitivity Level (MSL)
4 (72 Hours)
Number of Terminations
8
Terminal Finish
TIN LEAD
Subcategory
Operational Amplifier
Technology
BIPOLAR
Terminal Position
DUAL
Peak Reflow Temperature (Cel)
240
Number of Functions
1
Supply Voltage
5V
Terminal Pitch
2.54mm
Time@Peak Reflow Temperature-Max (s)
30
Pin Count
8
JESD-30 Code
R-PDIP-T8
Output Type
Rail-to-Rail
Number of Circuits
1
Current - Supply
700μA
Slew Rate
3V/μs
Amplifier Type
J-FET
Common Mode Rejection Ratio
80 dB
Current - Input Bias
2pA
Voltage - Supply, Single/Dual (±)
5V~36V ±2.5V~18V
Gain Bandwidth Product
1.8MHz
Neg Supply Voltage-Nom (Vsup)
-5V
Unity Gain BW-Nom
1900 kHz
Average Bias Current-Max (IIB)
0.005μA
Voltage - Input Offset
400μV
Current - Output / Channel
20mA
-3db Bandwidth
1.9MHz
Height Seated (Max)
5.33mm
Length
9.27mm
RoHS Status
Non-RoHS Compliant
In-Stock:1949 items

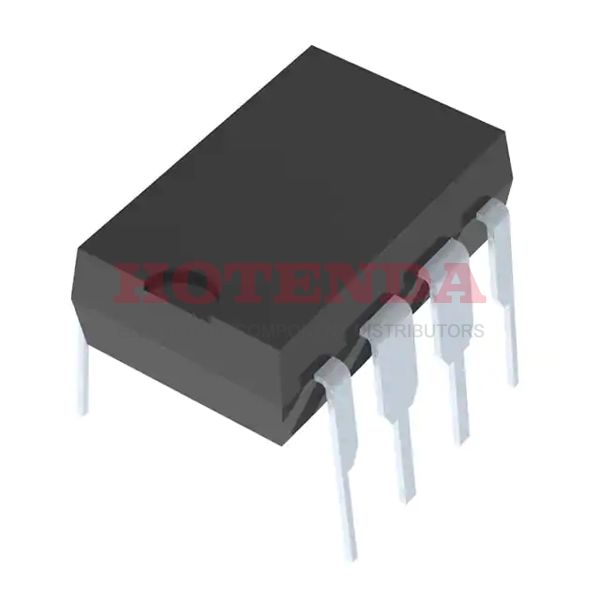

AD820AN Product Details
AD820AN Overview
Packaging for the buffer amplifier is in the form of a 8-DIP (0.300, 7.62mm) case. A J-FET-type buffer amplifier is shown here. There is a Tube case that is delivered with the instrumentation amplifiers. A total of 8 terminations have been reported in the past few weeks. Buffer amplifier has a total of 8 pins on it. I would like you to keep in mind that this buffer amplifier needs to be run at a voltage of 5V. In more specific terms, this linear amplifier can be categoriOperational Amplifiered as a Operational Amplifier-type
