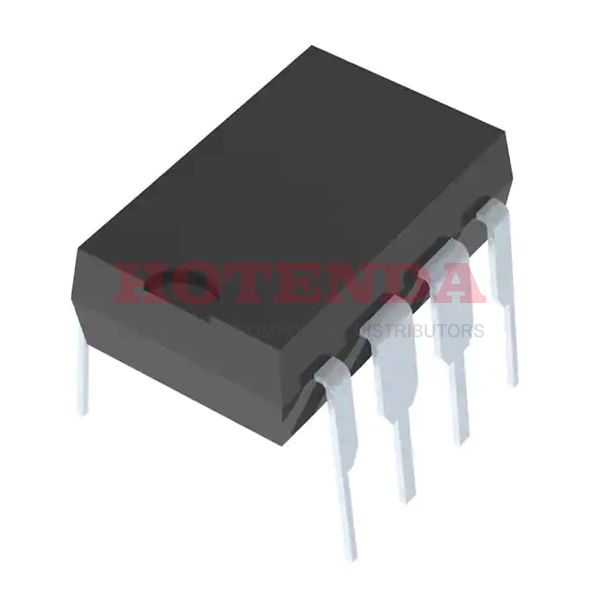

AD706JN Overview
It is packaged in an 8-DIP (0.300, 7.62mm)-case that protects the operational amplifiers from damage. Op amps are General Purpose types of amplifier on the chip. It comes in a Tube case, which protects instrumentation amplifier from damage during delivery. During the past two weeks, there have been close to 8 terminations. The pins on this board total to 8 in total. It is important to remember that this op amp should be operated at a voltage of 15V volts. In order to be more specific, this instrumentation amplifier is one of the types of Operational Amplifier devices. This electrical part should be mounted using type Through Hole. In terms of operating temperature, this instrumentation amplifier is well suited to a temperature range of 0°C~70°C. There are 2 circuits on op amps. As a recommendation, this electronic component should be used with a power supply that can deliver 750μA.
AD706JN Features
8 Pins
supply voltage of 15V
AD706JN Applications
There are a lot of Rochester Electronics, LLC AD706JN Instrumentational OP Amps applications.
- Signal transformation
- Logarithmic operation circuits
- Non-polarized electrodes
- Large motor controllers
- Commercial audio systems
- Comparator
- High speed sample
- PDA
- Hand-held batteries
- Addition operation circuits
