Name: 1N5997B
Brand: Rochester Electronics, LLC
SKU: 1N5997B
Availability: InStock

new-10%

1N5997B

Manufacturer part number:1N5997B

Manufacturer:Rochester Electronics, LLC

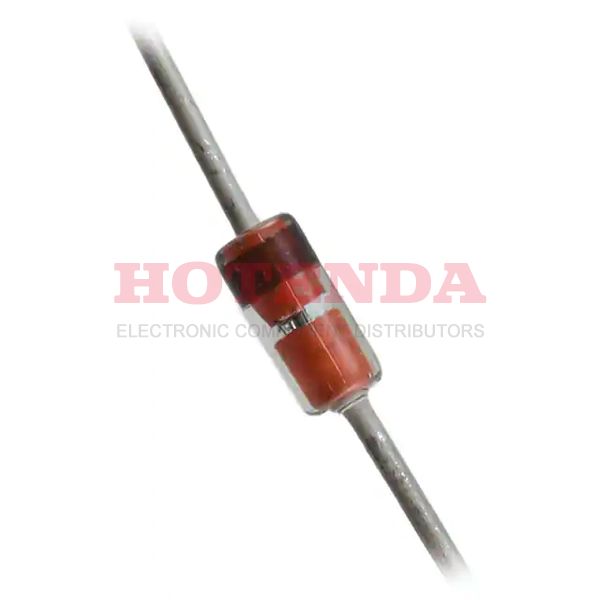

Description:ZENER DIODE 7Ohm ±5% 500μA @ 6V -65°C~200°C 2 Terminations DO-204AH, DO-35, Axial

Case Package:SOT-23

Datasheet:1N5997B Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	DO-204AH, DO-35, Axial
Surface Mount	NO
Diode Element Material	SILICON
Operating Temperature	-65°C~200°C
Packaging	Bulk
Tolerance	±5%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Terminal Finish	MATTE TIN
Terminal Form	WIRE
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Reach Compliance Code	unknown
Time@Peak Reflow Temperature-Max (s)	NOT APPLICABLE
Pin Count	2
JESD-30 Code	O-LALF-W2
Qualification Status	COMMERCIAL
Number of Elements	1
Polarity	UNIDIRECTIONAL
Configuration	SINGLE
Power Dissipation-Max	0.5W
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	500μA @ 6V
Voltage - Forward (Vf) (Max) @ If	1.2V @ 200mA
Case Connection	ISOLATED
Power - Max	500mW
Impedance-Max	7Ohm
Reference Voltage	7.5V
Voltage - Zener (Nom) (Vz)	7.5V
Voltage Tol-Max	5%
Working Test Current	5mA
RoHS Status	ROHS3 Compliant

1N5997B Product Details

1N5997B Overview

This electrical device requires reverse leakage current of 500μA @ 6V.Tol is the maximum voltage that can be supplied (5%).The maximum voltage - Zener (Nom) is reduced to 7.5V during operation.Working test voltage should be set to 5mA for this device to operate.Zener single diode reaches 1.2V @ 200mA when Zener single diode is supplied wZener single diodeh the maximum voltage - Forward (Vf).
