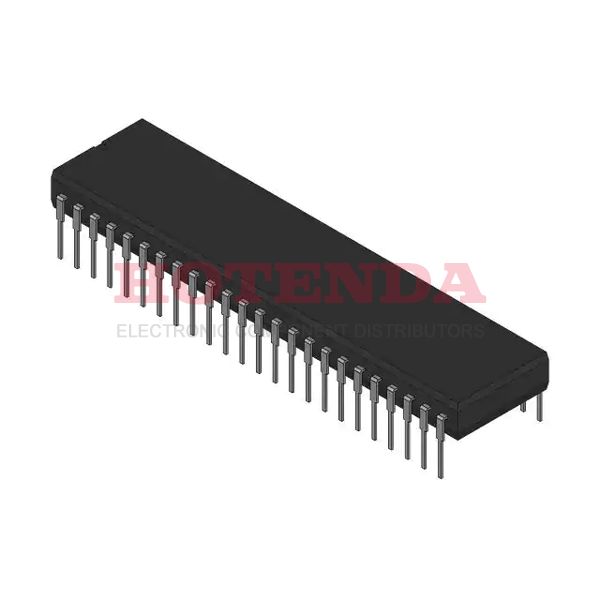

Name: P8095BH
Brand: Rochester Electronics
SKU: P8095BH
Availability: InStock

new-10%

P8095BH

Manufacturer part number:P8095BH

Manufacturer:Rochester Electronics

Description:Microcontroller 5V

Case Package:SOT-23

Datasheet:P8095BH Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Surface Mount	NO
JESD-609 Code	e0
Pbfree Code	no
Number of Terminations	48
Terminal Finish	Tin/Lead (Sn/Pb)
HTS Code	8542.31.00.01
Subcategory	Microcontrollers
Technology	NMOS
Terminal Position	DUAL
Terminal Form	THROUGH-HOLE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Supply Voltage	5V
Terminal Pitch	2.54mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	48
JESD-30 Code	R-PDIP-T48
Qualification Status	Not Qualified
Operating Temperature (Max)	70°C
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	5V
Temperature Grade	COMMERCIAL
Supply Voltage-Min (Vsup)	4.5V
Number of I/O	20
Speed	12 MHz
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Clock Frequency	12MHz
Supply Current-Max	240mA
Bit Size	16
Has ADC	YES
DMA Channels	NO
PWM Channels	YES
DAC Channels	NO
Address Bus Width	16
ROM (words)	0
CPU Family	8096
External Data Bus Width	16
RAM (bytes)	232
Length	61.79mm
Height Seated (Max)	5.08mm
Width	15.24mm
RoHS Status	Non-RoHS Compliant

P8095BH Product Details

P8095BH Overview

The board has 20 I/Os. Microcontroller's a MICROCONTROLLER uPs/uCs/Peripheral IC. IC Chip terminations are 48. As a result, this Microcontroller comes with a 16-bit size. Input voltage for the chip is 5V volts. A total of NO DMA channels are available. Using YES PWM channels, the device works. The pins counted are 48. The device is powered by the the 8096 CPU family that is embedded in it. As far as the clock frequency is concerned, it operates at 12MHz clock speed.
