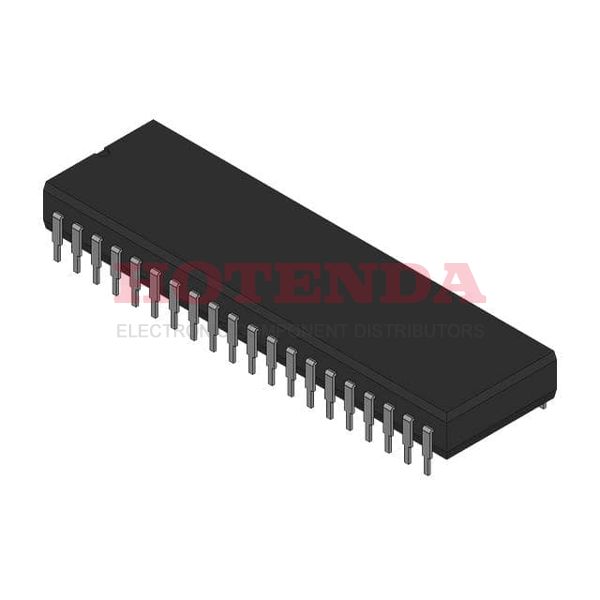

Name: LD8752BH
Brand: Rochester Electronics
SKU: LD8752BH
Availability: InStock

new-10%

LD8752BH

Manufacturer part number:LD8752BH

Manufacturer:Rochester Electronics

Description:Microcontroller 5V

Case Package:SOT-23

Datasheet:LD8752BH Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Surface Mount	NO
Number of Terminations	40
Additional Feature	BOOLEAN PROCESSOR
Terminal Position	DUAL
Terminal Form	THROUGH-HOLE
Supply Voltage	5V
Terminal Pitch	2.54mm
JESD-30 Code	R-GDIP-T40
Operating Temperature (Max)	85°C
Operating Temperature (Min)	-40°C
Supply Voltage-Max (Vsup)	5.5V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	4.5V
Number of I/O	32
Speed	6 MHz
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Clock Frequency	12MHz
Bit Size	8
Has ADC	NO
DMA Channels	NO
PWM Channels	NO
DAC Channels	NO
Address Bus Width	16
External Data Bus Width	8
ROM Programmability	UVPROM
Length	52.325mm
Height Seated (Max)	5.72mm
Width	15.24mm
RoHS Status	Non-RoHS Compliant

LD8752BH Product Details

LD8752BH Overview

In total, it has 32 inputs and outputs. MICROCONTROLLER uPs, uCs, and peripheral ICs make up the Microcontroller. Microcontroller is known that the chip has 40 terminations in total. The part works on a 8-bit basis. An output voltage of 5V volts is available for this Microcontroller chip. The Microcontroller chip has NO DMA channels. In order for the device to work with the motor, it utilizes the PWM channel NO. In order for it to function, it needs to have a clock frequency of 12MHz. As a few examples, there are additional features like BOOLEAN PROCESSOR that are available in the software.
