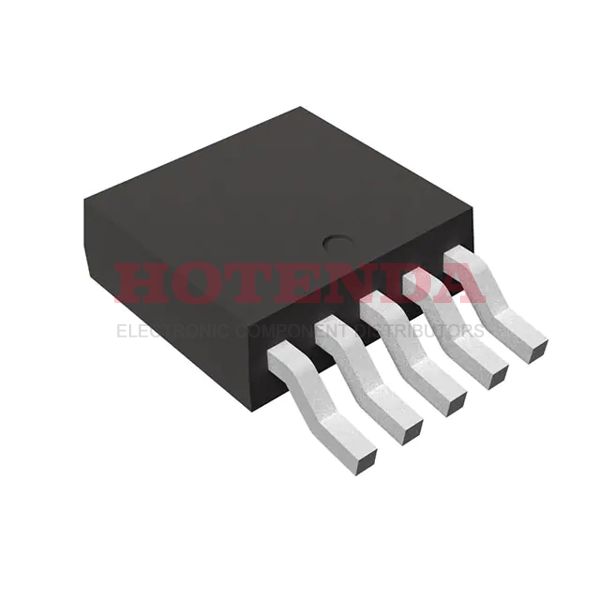

Name: RP132J501B-T1-FE
Brand: RICOH Electronic Devices Co., LTD.
SKU: RP132J501B-T1-FE
Price: 0.50000 USD
Availability: InStock

new-10%

RP132J501B-T1-FE

Manufacturer part number:RP132J501B-T1-FE

Manufacturer:RICOH Electronic Devices Co., LTD.

Description:1.27mm PMIC 4

Case Package:SOT-23

Datasheet:RP132J501B-T1-FE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Surface Mount	YES
Packaging	Tape & Reel (TR)
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
HTS Code	8542.39.00.01
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	1.27mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	4
JESD-30 Code	R-GSSO-G5
Output Voltage 1	5V
Input Voltage (Min)	1.4V
Input Voltage (Max)	6.5V
Output Voltage1-Max	5.095V
Output Voltage1-Min	4.905V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	1A
Dropout Voltage1-Max	0.68V
Length	6.6mm
Height Seated (Max)	2.627mm
Width	6.2mm
RoHS Status	RoHS Compliant

RP132J501B-T1-FE Product Details

RP132J501B-T1-FE Overview

The package is delivered in a Tape & Reel (TR) case. On the Voltage regulator IC, there are 5 terminations that can be connected. As you can see, the regulator IC has a total of 4 pins. As far as the regulator type, it is a FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR type.
