Name: RP111L281D5-TR
Brand: RICOH Electronic Devices Co., LTD.
SKU: RP111L281D5-TR
Price: 0.53000 USD
Availability: InStock

new-10%

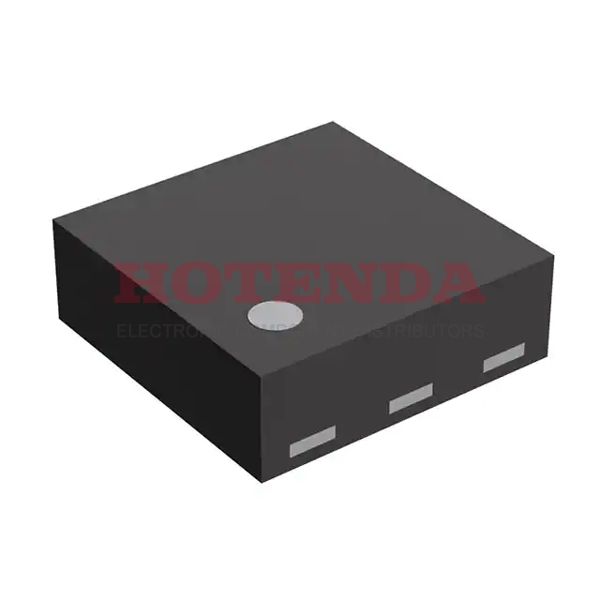

RP111L281D5-TR

Manufacturer part number:RP111L281D5-TR

Manufacturer:RICOH Electronic Devices Co., LTD.

Description:0.4mm PMIC 6

Case Package:SOT-23

Datasheet:RP111L281D5-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Surface Mount	YES
Packaging	Tape & Reel (TR)
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	6
ECCN Code	EAR99
Terminal Finish	PALLADIUM
HTS Code	8542.39.00.01
Terminal Position	DUAL
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.4mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	6
JESD-30 Code	S-PDSO-N6
Output Voltage 1	2.85V
Input Voltage (Min)	1.4V
Input Voltage (Max)	5.25V
Output Voltage1-Max	2.8928V
Output Voltage1-Min	2.8073V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Output Current1-Max	0.5A
Dropout Voltage1-Max	0.34V
Length	1.2mm
Height Seated (Max)	0.4mm
Width	1.2mm
RoHS Status	RoHS Compliant

RP111L281D5-TR Product Details

RP111L281D5-TR Overview

An Tape & Reel (TR) case is included with the delivery. There are 6 terminations on the battery regulator IC chip and each of them has its own function. It has a total of 6 pins on IC voltage regulator. It is worth mentioning that the regulator type for this regulator IC is FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR.
