Name: R1501S100B-E2-FE
Brand: RICOH Electronic Devices Co., LTD.
SKU: R1501S100B-E2-FE
Price: 1.68000 USD
Availability: InStock

new-10%

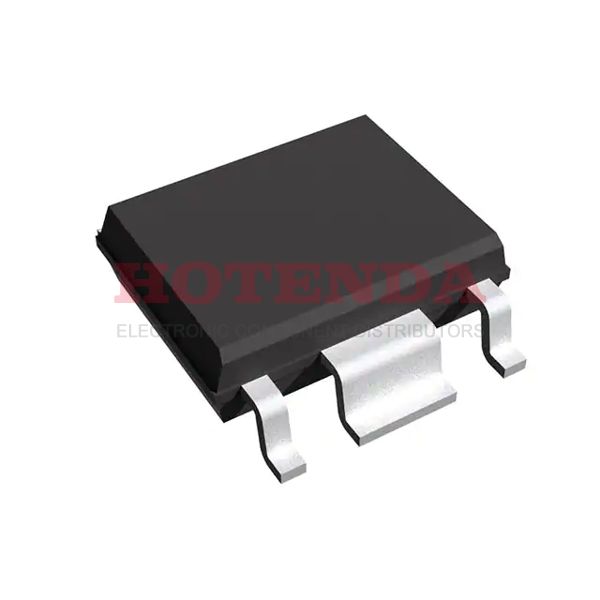

R1501S100B-E2-FE

Manufacturer part number:R1501S100B-E2-FE

Manufacturer:RICOH Electronic Devices Co., LTD.

Description:1.905mm PMIC 6

Case Package:SOT-23

Datasheet:R1501S100B-E2-FE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Surface Mount	YES
Packaging	Tape & Reel (TR)
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	6
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
HTS Code	8542.39.00.01
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	1.905mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	6
JESD-30 Code	R-PDSO-G6
Output Voltage 1	10V
Input Voltage (Min)	3V
Input Voltage (Max)	24V
Output Voltage1-Max	10.35V
Output Voltage1-Min	9.65V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Dropout Voltage1-Max	0.775V
Operating Temperature TJ-Max	125°C
Operating Temperature TJ-Min	-40°C
Length	5.02mm
Height Seated (Max)	1.85mm
Width	3.9mm
RoHS Status	RoHS Compliant

R1501S100B-E2-FE Product Details

R1501S100B-E2-FE Overview

In the case of Tape & Reel (TR) cases, the regulater IC is delivered. The PMIC chip has 6 terminations. The chip has a total of 6 pins on it, each with its own function. This device has a regulator type called FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR, which means it operates on a DC voltage.
