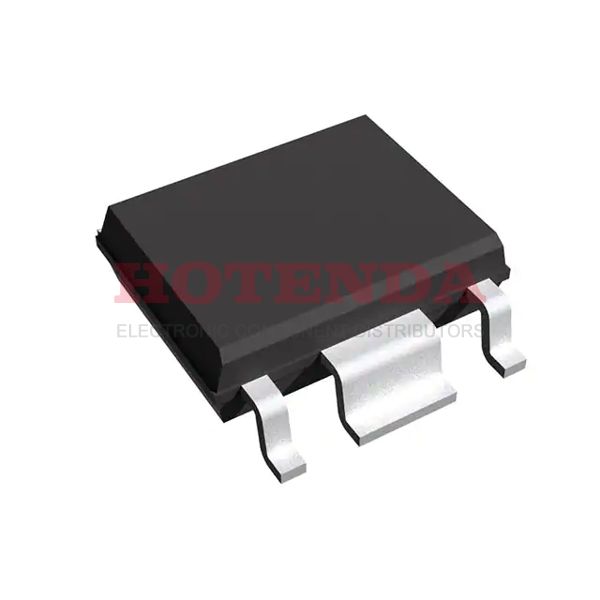

Name: R1171S331A-E2-FE
Brand: RICOH Electronic Devices Co., LTD.
SKU: R1171S331A-E2-FE
Price: 0.59000 USD
Availability: InStock

new-10%

R1171S331A-E2-FE

Manufacturer part number:R1171S331A-E2-FE

Manufacturer:RICOH Electronic Devices Co., LTD.

Description:1.905mm PMIC 6

Case Package:SOT-23

Datasheet:R1171S331A-E2-FE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Surface Mount	YES
Packaging	Tape & Reel (TR)
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	6
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
HTS Code	8542.39.00.01
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	1.905mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	6
JESD-30 Code	R-PDSO-G6
Qualification Status	Not Qualified
Output Voltage 1	3.3V
Input Voltage (Min)	2.1V
Input Voltage (Max)	6V
Output Voltage1-Max	3.366V
Output Voltage1-Min	3.234V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Dropout Voltage1-Max	0.18V
Length	5.02mm
Height Seated (Max)	1.85mm
Width	3.9mm
RoHS Status	RoHS Compliant

R1171S331A-E2-FE Product Details

R1171S331A-E2-FE Overview

In the case of Tape & Reel (TR) cases, the regulater IC is delivered. The PMIC chip has 6 terminations. The sum of the pins in this unit is 6. This device has a regulator type called FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR, which means it operates on a DC voltage.
