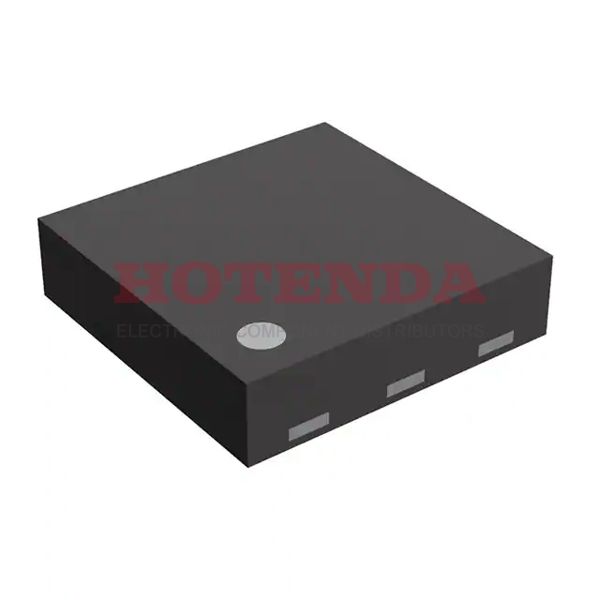

Name: R1154L040B-TR
Brand: RICOH Electronic Devices Co., LTD.
SKU: R1154L040B-TR
Price: 0.36000 USD
Availability: InStock

new-10%

R1154L040B-TR

Manufacturer part number:R1154L040B-TR

Manufacturer:RICOH Electronic Devices Co., LTD.

Description:0.5mm PMIC 6

Case Package:SOT-23

Datasheet:R1154L040B-TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Surface Mount	YES
Packaging	Tape & Reel (TR)
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	6
ECCN Code	EAR99
Terminal Finish	Palladium (Pd)
HTS Code	8542.39.00.01
Terminal Position	DUAL
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	6
JESD-30 Code	S-PDSO-N6
Qualification Status	Not Qualified
Output Voltage 1	4V
Input Voltage (Min)	5V
Input Voltage (Max)	24V
Output Voltage1-Max	4.08V
Output Voltage1-Min	3.92V
Regulator Type	FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR
Length	1.6mm
Height Seated (Max)	0.4mm
Width	1.6mm
RoHS Status	RoHS Compliant

R1154L040B-TR Product Details

R1154L040B-TR Overview

Deliveries are in Tape & Reel (TR) cases. Basically, the voltage regulator chip is made up of 6 terminations. The total number of pins in the regulator is 6. A FIXED POSITIVE SINGLE OUTPUT STANDARD REGULATOR regulator is the type of regulator that is used for this device.
