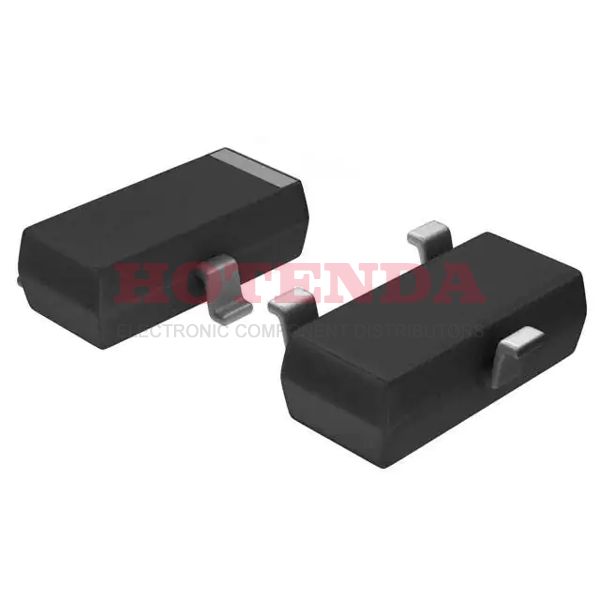

Name: RT9166-33GV
Brand: Richtek USA Inc.
SKU: RT9166-33GV
Availability: InStock

new-10%

RT9166-33GV

Manufacturer part number:RT9166-33GV

Manufacturer:Richtek USA Inc.

Description:Fixed 0.95mm PMIC TO-236-3, SC-59, SOT-23-3

Case Package:SOT-23

Datasheet:RT9166-33GV Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	18 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2012
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	3
ECCN Code	EAR99
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	0.95mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
JESD-30 Code	R-PDSO-G3
Voltage - Input (Max)	5.5V
Output Voltage	3.3V
Output Type	Fixed
Output Configuration	Positive
Output Voltage 1	3.3V
Input Voltage (Min)	2.8V
Voltage - Output (Min/Fixed)	3.3V
Number of Regulators	1
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	300μA
Voltage Dropout (Max)	0.23V @ 300mA Typ
PSRR	55dB (1kHz)
Dropout Voltage	230mV
Output Current1-Max	0.3A
Min Current Limit	300mA
Length	2.8955mm
RoHS Status	ROHS3 Compliant

RT9166-33GV Product Details

RT9166-33GV Overview

Tape & Reel (TR) cases are used for delivery. The Liner regulator IC is packaged in TO-236-3, SC-59, SOT-23-3 case. On the Linear IC itself, there are 3 terminations. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~85°C TA degrees. There is a Positive configured as the output function for this IC regulator. There is a dropout voltage of 10 volts on this IC regulator.
