ISL84524IU Overview

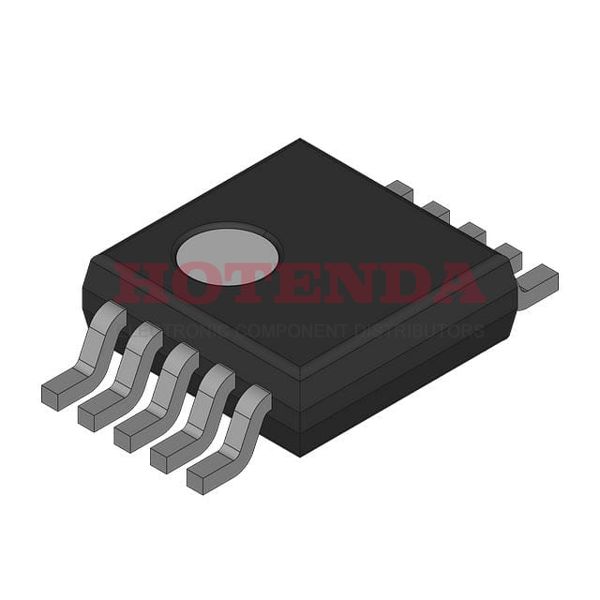

Due to its 10-TFSOP, 10-MSOP (0.118, 3.00mm Width) packaging, the electronic part is convenient for international shipping. In order to provide high reliability, an advanced packaging method Tube is used. This analog switch is mounted in Surface Mount. Multiplexers and demultiplexers have the same number of circuits 4:1. The operating temperature is extended to around -40°C~85°C TA. A total of 10 terminations have been recorded. High-quality output is provided by the electronic component's 4 channels. With a 3V voltage supply, the electrical component should be turned on and run. A total of 10 pins are injected into the electrical part body. The analog switch ics are built using SP4T switching circuits. 1 circuits are used in this analogue multiplexer. If you are looking for variants of the digital switch, trying search with ISL84524. This analog switch requires a voltage of 2V~12V to drain from a single voltage supply. There is an analog IC SINGLE-ENDED MULTIPLEXER integrated with this board.
ISL84524IU Features
4 Channels
Switch Circuit: SP4T
ISL84524IU Applications
There are a lot of Renesas Electronics America Inc. ISL84524IU Analog Switches & Multiplexers ICs applications.
- T1/E1 Terminals
- Video switching
- E1 Multiplexer
- Switching Systems
- Existing multiplexer applications (both fault-protected and nonfault-protected)
- Low-Voltage
- DSUs
- SONET
- Cable PC
- Frame Relay Equipment
