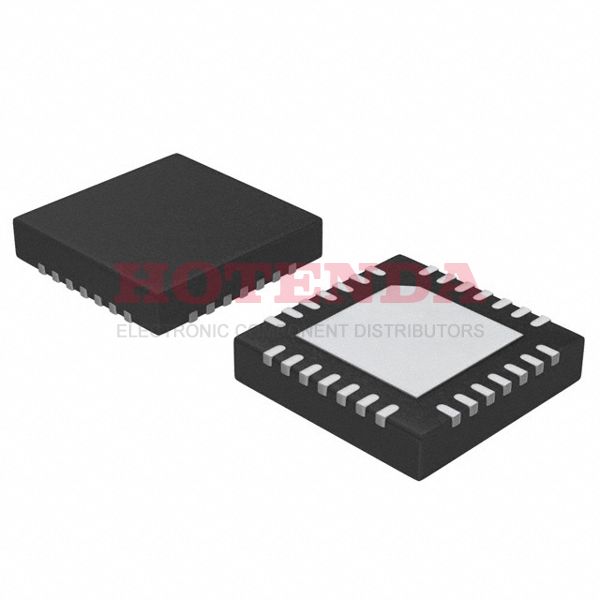

5V49EE702NDGI8 Overview
This clock IC is packaged using the Tape & Reel (TR) method. The 28-VFQFN Exposed Pad package includes this clock generator. As the Clock PLL's input, LVCMOS, LVTTL, Crystal is designed to be used in order to generate the clock signal. A total of 1 circuits are implemented to access the full performance of the electrical part. An upper frequency limit of 500MHz Max can be achieved with this clock-based frequency synthesizer. Due to the Surface Mount-shape, this electronic component can be conveniently installed on the panel. There are 3.135V~3.465V different supply voltages that can be provided for this RF synthesizer. Based on the test statistics, an ambient temperature of -40°C~85°C should be set. HCSL, LVCMOS, LVDS, LVPECL, LVTTL is designed for clock generator's output. This is an electronic part that can be classified as a Clock Generator, Multiplexer in this case. This part number IDT5V49EE702 is related to the following electrical components. It is part of the VersaClock? III series of electronic components.
5V49EE702NDGI8 Features
Available in the 28-VFQFN Exposed Pad
5V49EE702NDGI8 Applications
There are a lot of Renesas Electronics America Inc. 5V49EE702NDGI8 Clock Generators applications.
- Picocells, femtocells and small cells
- Jitter reduction
- Signal analyzer
- Radiotelephones
- Ultrasound diagnosis
- GPS systems
- Modems
- Clock recovery
- Mobile telephones
- Automatic test equipment
