R5F100BDANA#U0 Overview

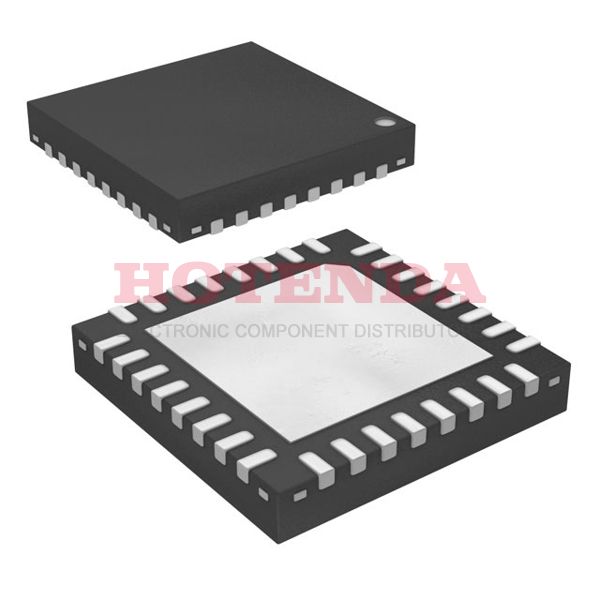

This Microcontroller comes in a 32-WFQFN Exposed Pad package. This Microcontroller has 22 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 16-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in RL78/G13 Series. The size of the program memory of Microcontroller is 48KB 48K x 8. MCU is powered by RL78 Core Processor. The device belongs to MICROCONTROLLER uPs/uCs/Peripheral ICs Type. The MCU has a number of 32 terminals. Microcontroller comes with 16 bit size. The component always operates in 3V supply voltage. MCU chip has YES DMA channels. The part owns 48kB memory size. You can find alternatives through the base part number R5F100. MCU's frequency is 32MHz. The device works in YES PWM channels. The pin number of the component remains 32. It has 2 timers/counters. It counts 32 pins. To name a few, there are additional features like IT ALSO OPERATES AT 4MHZ @1.6V MIN SUPPLY @ LOW-VOLTAGE MAIN MODE.
R5F100BDANA#U0 Features
32-WFQFN Exposed Pad package
Mounting type of Surface Mount
R5F100BDANA#U0 Applications
There are a lot of Renesas Electronics America
R5F100BDANA#U0 Microcontroller applications.
- Automatic control
- Equipment control
- Instrument control
- Toys
- Robots
- Radio
- Television
- Heater/Fan
- Calculator
- Kindle
