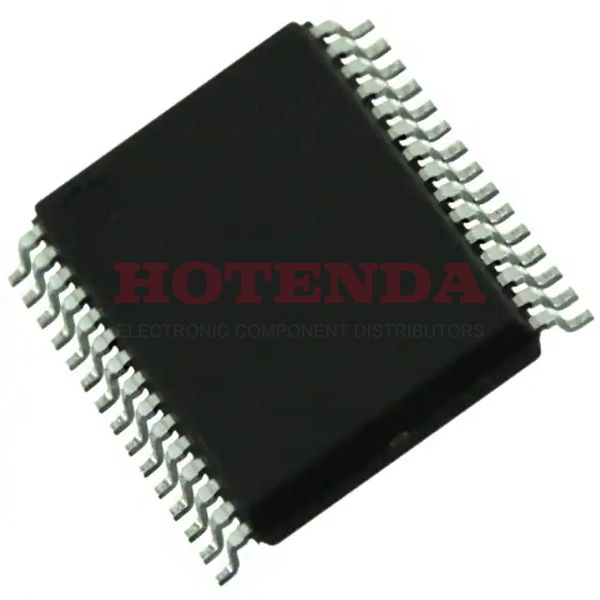

R5F100AEDSP#V0 Overview
A 30-LSSOP (0.240, 6.10mm Width) package is included. In total, it has 21 inputs and outputs. This Microcontroller is mounted using the Surface Mount mounting type. Powered by the 16-Bit core, it offers a wide range of capabilities. The type of memory that the program uses is FLASH. The temperature range of this Microcontroller is within the range of -40°C~85°C TA. RL78/G13 series components belong to this electrical component. Its program memory size is 64KB 64K x 8. There is a RL78 Core Processor inside MCU that provides this device with its power. MICROCONTROLLER uPs, uCs, and peripheral ICs make up the Microcontroller. Microcontroller is known that the chip has 30 terminations in total. The part works on a 16-bit basis. An output voltage of 3V volts is available for this Microcontroller chip. The Microcontroller chip has YES DMA channels. 64kB memory size belongs to the part. R5F100 is the base part number that you can use to find alternatives. A good performance can be achieved at a frequency of 32MHz, as long as it is operated at a low power consumption. In order for the device to work with the motor, it utilizes the PWM channel YES. A total of 30 pins are present. As a few examples, there are additional features like IT ALSO OPERATES AT 4MHZ @1.6V MIN SUPPLY @ LOW-VOLTAGE MAIN MODE that are available in the software.
R5F100AEDSP#V0 Features
30-LSSOP (0.240, 6.10mm Width) package
Mounting type of Surface Mount
R5F100AEDSP#V0 Applications
There are a lot of Renesas Electronics America
R5F100AEDSP#V0 Microcontroller applications.
- Calculator
- Kindle
- Christmas lights
- 3D printers
- Washing machine
- Microwave ovens
- Home appliances
- Home video and audio
- Entertainment products
- Digital cameras
