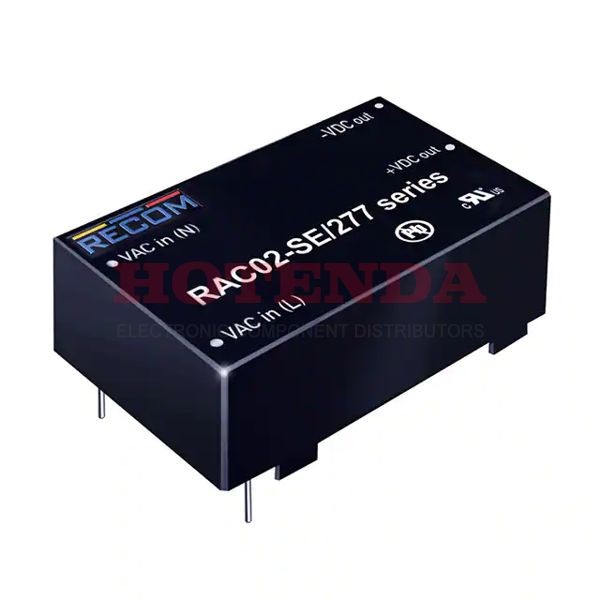

RAC02-24SE/277 datasheet pdf and AC DC Converters product details from Recom Power stock available on our website
SOT-23
RAC02-24SE/277 Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
11 Weeks
Mount
Through Hole
Mounting Type
Through Hole
Package / Case
4-DIP Module
Weight
0.054lb 24.49g
Operating Temperature
-40°C~85°C With Derating
Series
POWERLINE RAC02-SE/277 (2W)
Size / Dimension
1.33Lx0.96W x 0.70 H 33.7mmx24.4mmx17.8mm
Feature
OCP, OVP, SCP
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
4
ECCN Code
EAR99
Type
Enclosed
Applications
Household Appliances, ITE (Commercial)
Power Rating
2W
Max Power Dissipation
2W
Technology
HYBRID
Terminal Position
DUAL
Terminal Form
PIN/PEG
Peak Reflow Temperature (Cel)
NOT SPECIFIED
Number of Functions
1
Depth
33.7mm
Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED
JESD-30 Code
R-PDMA-P4
Number of Outputs
1
Approval Agency
CE, cURus
Efficiency
76%
Output Voltage
24V
Max Output Current
83mA
Input Voltage-Nom
277V
Trim/Adjustable Output
NO
Voltage - Input
85V~305VAC
Output Current
83mA
Output Power
2W
Max Output Voltage
24V
Min Input Voltage
85V
Max Input Voltage
305V
Current - Output 1
83mA
Max Output Power
2W
Line Regulation
±1.5%
Load Regulation
±6%
Min Input Voltage (AC)
85V
Max Input Voltage (AC)
305V
Height
17.75mm
Width
22.2mm
REACH SVHC
No SVHC
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:473 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$13.476253
$13.476253
10
$12.713447
$127.13447
100
$11.993817
$1199.3817
500
$11.314922
$5657.461
1000
$10.674455
$10674.455
RAC02-24SE/277 Product Details
The Recom Power RAC02-24SE/277 AC-DC Converter is a reliable and efficient power supply solution for a variety of applications. This converter is designed to provide a steady 24V output with a maximum current of 0.083A. It is a PCB-mounted device, making it easy to install and integrate into existing systems. The RAC02-24SE/277 is designed to be highly efficient, with a low no-load power consumption of less than 0.3W. It also features a wide input voltage range of 85-264VAC, making it suitable for use in a variety of environments. The RAC02-24SE/277 is a reliable and cost-effective solution for powering a variety of devices.
