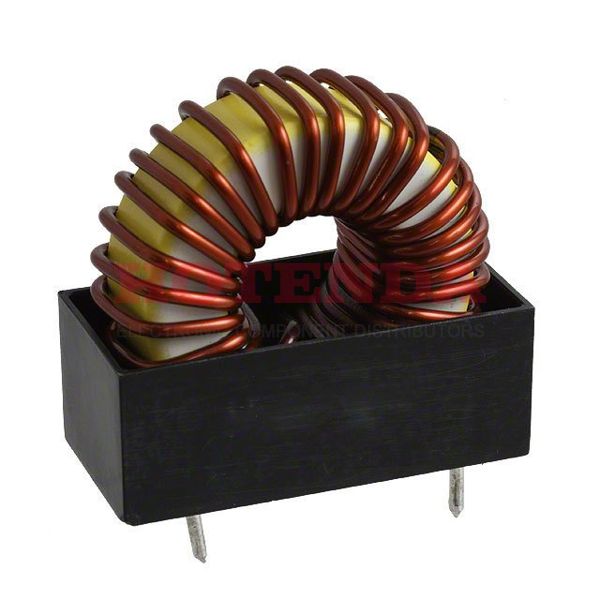

Name: PE-51513NL
Brand: Pulse Electronics Power
SKU: PE-51513NL
Price: 13.48000 USD
Availability: InStock

new

PE-51513NL

Manufacturer part number:PE-51513NL

Manufacturer:Pulse Electronics Power

Description:PE-51513NL datasheet pdf and Fixed Inductors product details from Pulse Electronics Power stock available on our website

Case Package:SOT-23

Datasheet:PE-51513NL Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	Radial, Vertical, 4 Leads (Open)
Terminal Shape	WIRE
Shape/Size Description	RECTANGULAR PACKAGE
Operating Temperature	-40°C~130°C
Packaging	Tray
Published	2006
Size / Dimension	2.300Lx1.110W 58.42mmx28.19mm
Tolerance	20%
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Type	Toroidal
Resistance	32mOhm
HTS Code	8504.50.80.00
Shielding	NO
Number of Functions	1
Depth	28.19mm
Current Rating	10A
Military Standard	Not
Lead Pitch	38.1mm
Inductance	144μH
Test Frequency	50kHz
DC Resistance (DCR)	32mOhm Max
Max DC Current	10A
Inductor Application	HIGH CURRENT INDUCTOR
Lead/Base Style	Pin
DC Current	10A
Height	58.42mm
Height Seated (Max)	2.300 58.42mm
Radiation Hardening	No
RoHS Status	RoHS Compliant

About PE-51513NL

The PE-51513NL from Pulse Electronics Power is a high-performance microcontroller designed for a wide range of embedded applications. This component features PE-51513NL datasheet pdf and Fixed Inductors product details from Pulse Electronics Power stock available on our website.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the PE-51513NL, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
