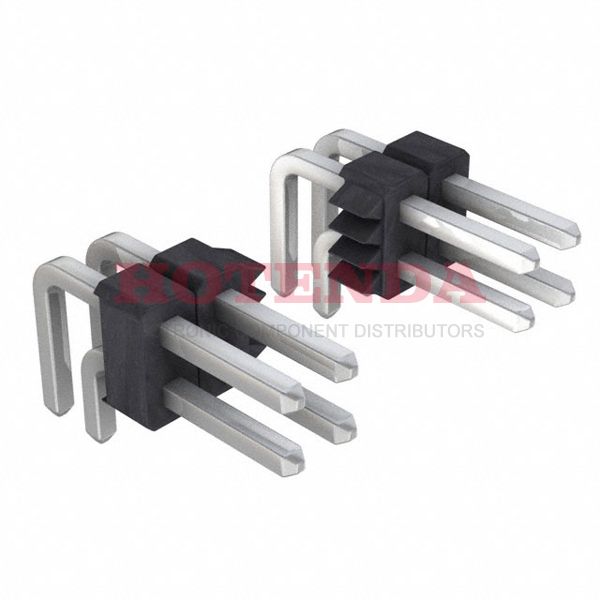

Name: 892-80-020-20-001101
Brand: Preci-Dip
SKU: 892-80-020-20-001101
Price: 0.96000 USD
Availability: InStock

new-10%

892-80-020-20-001101

Manufacturer part number:892-80-020-20-001101

Manufacturer:Preci-Dip

Description:892 Series 2-Row Header Solder Brass Bulk Through Hole, Right Angle Tin Polyamide (PA), Nylon, Glass Filled 20-Position Board to Board 0.200 5.08mm Height

Case Package:SOT-23

Datasheet:892-80-020-20-001101 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Brass
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Housing Material	Polychlorinated
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	892
Published	2012
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Connector Type	Header
Number of Positions	20
Number of Rows	2
Voltage - Rated	150VDC
Fastening Type	Push-Pull
Contact Finish - Mating	Tin
Contact Type	Male Pin
Orientation	Right Angle
Depth	12.89mm
Insulation Height	0.200 5.08mm
Style	Board to Board
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Number of Conductors	ONE
Reference Standard	UL
Reliability	COMMERCIAL
Row Spacing - Mating	0.100 (2.54mm)
Contact Length - Post	0.118 3.00mm
Shrouding	Unshrouded
Number Of PCB Rows	2
Contact Length - Mating	0.236 6.00mm
PCB Contact Pattern	RECTANGULAR
Housing Color	Black
Rated Current (Signal)	3A
Insulation Resistance	10000000000Ohm
Mating Contact Pitch	0.1 inch
Max Voltage Rating (AC)	100V
Max Current Rating	3A
Dielectric Withstanding Voltage	1400VAC V
Durability	100 Cycles
Length	25.4mm
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

892-80-020-20-001101 Product Details

892-80-020-20-001101 Overview

It comes in Header packaging.The device's mounting type is Through Hole, Right Angle.In order to package the product, a Bulk case is used.It belongs to the 892 Series of products.The part is mounted by Through Hole.The device runs in -55°C~125°C Operating Temperature.
